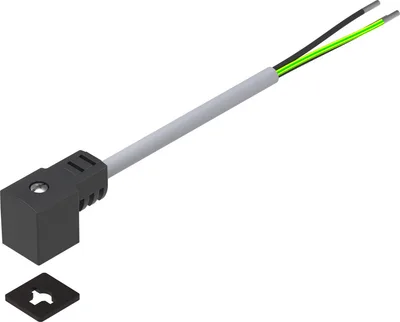

Festo NEBV-C1SW3-K-2.5-N-LE3-S9

Connecting cable. For solenoid coils form A, form B or form C. For solenoid coils with thread M8x1 or M12x1 A-coded. For solenoid coils ZC or various special connection patterns. Pre-assembled at one or both ends. Cable length 0.1 ... 30 m. With PUR cable. Ambient temperature -25 ... +80 °C

FestoMFR # NEBV-C1SW3-K-2.5-N-LE3-S9SKU # YLSVRJ4C0H0EVPZ

Cable designationWithout inscription label holder

Frequency of connection50

Product weight125

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket, narrow

Have questions?Chat on WhatsApp

About This Product

Festo NEBV-C1SW3-K-2.5-N-LE3-S9

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cable designationWithout inscription label holder

Frequency of connection50

Product weight125

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket, narrow

Electrical connection 1, cable outletAngled

Electrical connection 1, note on cable outletCan be rotated 180°

Electrical connection 1, connector systemPlug pattern type C to EN 175301-803

Electrical connection 1, number of connections/cores4

Electrical connection 1, used connections/cores4

Electrical connection 1, type of mountingOn solenoid valve via M2.5 central screw

Electrical connection 1, connection pattern00995798

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores3

Electrical connection 2, used connections/cores3

Operational voltage range DC0, 230

Operational voltage range AC0, 230

Current rating at 40° C6

Immunity to surge4

Reverse polarity protectionBipolar

Protective conductor connectionAvailable

Cable length2.5

Cable characteristicStandard

Test conditions cableTest conditions on request

Bending radius, moving cable52

Cable diameter5.2

Cable diameter tolerance± 0.1 mm

Cable structure3 x 0.5 mm²

Nominal cross section conductor0.5

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state

Ambient temperature-20, 70

Ambient temperature with moving cable-5, 70

CE mark (see declaration of conformity)To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Note on the contamination levelIn mounted state

Corrosion resistance class CRC3 - high corrosion stress

Material cable sheathPVC

Cable sheath colourGrey

Material housingTPE-U(PU)

Housing colourBlack

Material screwsStainless steel

Material sealsHNBR

Material electrical contactTin-plated copper alloy

Material insulating sheathPVC
