How can I get a price quote for Festo NEBV-A1W3-K-0.6-N-M12W3?

You can request a fast quote for Festo NEBV-A1W3-K-0.6-N-M12W3 from Yılsa Engineering. Reference part number YLSPRUVIT2ZV2BJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEBV-A1W3-K-0.6-N-M12W3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEBV-A1W3-K-0.6-N-M12W3 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEBV-A1W3-K-0.6-N-M12W3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

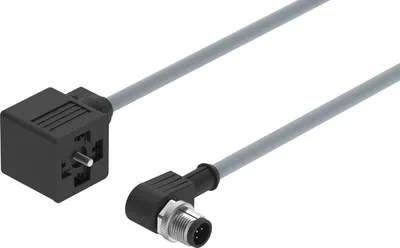

Festo NEBV-A1W3-K-0.6-N-M12W3

Connecting cable. For solenoid coils form A, form B or form C. For solenoid coils with thread M8x1 or M12x1 A-coded. For solenoid coils ZC or various special connection patterns. Pre-assembled at one or both ends. Cable length 0.1 ... 30 m. With PUR cable. Ambient temperature -25 ... +80 °C

FestoMFR # NEBV-A1W3-K-0.6-N-M12W3SKU # YLSPRUVIT2ZV2BJ

Approvalc CSA us (OL)

Cable designationWithout inscription label holder

Product weight100

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Have questions?Chat on WhatsApp

About This Product

Festo NEBV-A1W3-K-0.6-N-M12W3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Approvalc CSA us (OL)

Cable designationWithout inscription label holder

Product weight100

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletAngled

Electrical connection 1, connector systemConnection pattern type A based on EN 175301-803

Electrical connection 1, number of connections/cores4

Electrical connection 1, used connections/cores4

Electrical connection 1, type of mountingOn solenoid valve via M3 central screw

Electrical connection 1, connection pattern00995710

Electrical connection 2, functionControl side

Electrical connection 2, designRound

Electrical connection 2, connection typePlug

Electrical connection 2, cable outletAngled

Electrical connection 2, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 2, number of connections/cores5

Electrical connection 2, used connections/cores3

electrical connection 2, type of mountingScrew lock with hex A/F13

Electrical connection 2, connection pattern00995711

Operational voltage range DC0, 110

Nominal operating voltage DC110

Operational voltage range AC0, 110

Nominal operating voltage AC110

Current rating at 40° C1

Immunity to surge1.5

Protective conductor connectionAvailable

Cable length0.6

Cable characteristicStandard

Test conditions cableTest conditions on request

Cable diameter5.9

Cable diameter tolerance± 0.3 mm

Cable structure3 x 0.75 mm²

Degree of protectionIP67

Note on degree of protectionIn mounted state

Ambient temperature-25, 80

Ambient temperature with moving cable-25, 80

CE mark (see declaration of conformity)To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Pollution degree3

Corrosion resistance class CRC2 - Moderate corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourGrey

Material housingTPE-U(PUR)

Housing colourBlack

Material union nutDie-cast zinc, nickel-plated

Material insulating sheathPP
