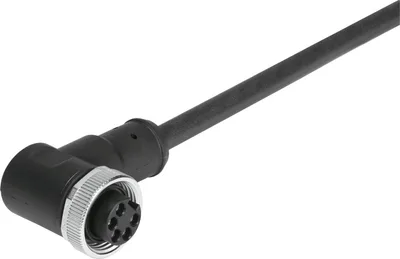

FESTO NEBU-G78W5-K-2-N-LE5

Power supply socket. Connecting cables with 5-pin plug/socket M12x1 A-coded according to EN 61076-2-101 and conductor nominal cross-section 1 mm² (NEBU-M12G5-E-...-Q8N-... ). Shielded connecting cables with 8-pin angled socket M12x1 A-coded according to EN 61076-2-101 (NEBU-M12W8-K-...). Connecting cable with power supply socket G7/8 coded according to NFPA/T3.5.29 R1-2007 (NEBU-G78W5-...)

FESTOMFR # NEBU-G78W5-K-2-N-LE5SKU # CEY-937FC781C0B8

Based on standardNFPA/T3.5.29 R1-2007

Cable designationWithout inscription label holder

Frequency of connection100

Product weight680

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Have questions?Chat on WhatsApp

About This Product

FESTO NEBU-G78W5-K-2-N-LE5

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Based on standardNFPA/T3.5.29 R1-2007

Cable designationWithout inscription label holder

Frequency of connection100

Product weight680

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletAngled

Electrical connection 1, note on cable outletCable outlet not in line with the industry standard. Matched with the CPX protective cover.

Electrical connection 1, connector systemG7/8 coded to NFPA/T3.5.29 R1-2007

Electrical connection 1, number of connections/cores5

Electrical connection 1, used connections/cores5

Electrical connection 1, type of mountingScrew-type lock

Electrical connection 1, connection pattern00995652

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores5

Electrical connection 2, used connections/cores5

Operational voltage range DC0, 300

Operational voltage range AC0, 300

Current rating at 40° C9

Immunity to surge4

Cable length2

Cable characteristicStandard

Test conditions cableTest conditions on request

Bending radius, fixed cable65

Cable diameter8.7

Cable diameter tolerance±0.2 mm

Cable structure5 x 1.5 mm²

Nominal cross section conductor1.5

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state

Ambient temperature-20, 80

CE mark (see declaration of conformity)To EU Low Voltage Directive

UKCA marking (see declaration of conformity)To UK regulations for electrical equipment

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Corrosion resistance class CRC1 - Low corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourBlack

Material housingTPE-U(PUR)

Housing colourBlack

Material screw-type lockBrass, nickel-plated

Material electrical contactGold-plated brass
