How can I get a price quote for Festo NEBS-SM12G12-E-0.3-N-M12G12?

You can request a fast quote for Festo NEBS-SM12G12-E-0.3-N-M12G12 from Yılsa Engineering. Reference part number YLSQTPQIA2GWCMN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEBS-SM12G12-E-0.3-N-M12G12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEBS-SM12G12-E-0.3-N-M12G12 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEBS-SM12G12-E-0.3-N-M12G12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

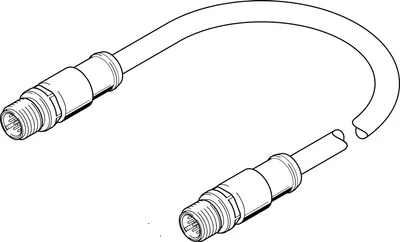

Festo NEBS-SM12G12-E-0.3-N-M12G12

Connecting cable. For connection with rectangular design L1, grid dimension 5.8 mm. For thread M12x1 A-coded according to EN 61076-2-101. For thread M16x0.75. Connecting cable for pressure sensor SPAN. Degree of protection IP40, IP65, IP67, IP69K, when mounted. Cable length 0.5 ... 10 m. With PVC or PUR cable. Ambient temperature -40 ... +70 °C

FestoMFR # NEBS-SM12G12-E-0.3-N-M12G12SKU # YLSQTPQIA2GWCMN

Conforms to standardEN 61076-2-101

Cable designationWith accessories

Frequency of connection100

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typePlug

Have questions?Chat on WhatsApp

About This Product

Festo NEBS-SM12G12-E-0.3-N-M12G12

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardEN 61076-2-101

Cable designationWith accessories

Frequency of connection100

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typePlug

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores12

Electrical connection 1, used connections/cores12

Electrical connection 1, type of mountingScrew-type lock with hexagon, size 13

Electrical connection 1, connection pattern00995669

Electrical connection 2, functionControl side

Electrical connection 2, designRound

Electrical connection 2, connection typePlug

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 2, number of connections/cores12

Electrical connection 2, used connections/cores12

electrical connection 2, type of mountingScrew lock with hex A/F13

Electrical connection 2, connection pattern00995669

Operational voltage range DC0, 30

Operational voltage range AC0, 30

Current rating at 40° C1.5

Immunity to surge0.5

Cable length0.3

Cable characteristicSuitable for energy chains

Test conditions cableTest conditions on request

Bending radius, fixed cable32

Bending radius, moving cable65

Cable diameter6.5

Cable structure12 x 0.25 mm²

Nominal cross section conductor0.25

Degree of protectionIP67

Note on degree of protectionIn mounted state

Ambient temperature-5, 70

Ambient temperature with moving cable-5, 70

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Corrosion resistance class CRC1 - Low corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourBlack

Material housingTPE-U(PUR)

Housing colourBlack

Material screw-type lockNickel-plated die-cast zinc

Material electrical contactGold-plated brass
