How can I get a price quote for Festo NEBS-M12G12-KS-0.5-SM12G12?

You can request a fast quote for Festo NEBS-M12G12-KS-0.5-SM12G12 from Yılsa Engineering. Reference part number YLSO46WM1U5M8PJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEBS-M12G12-KS-0.5-SM12G12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEBS-M12G12-KS-0.5-SM12G12 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEBS-M12G12-KS-0.5-SM12G12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

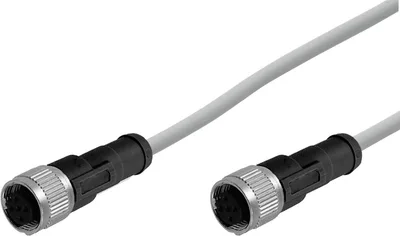

Festo NEBS-M12G12-KS-0.5-SM12G12

Connecting cable. For connection with rectangular design L1, grid dimension 5.8 mm. For thread M12x1 A-coded according to EN 61076-2-101. For thread M16x0.75. Connecting cable for pressure sensor SPAN. Degree of protection IP40, IP65, IP67, IP69K, when mounted. Cable length 0.5 ... 10 m. With PVC or PUR cable. Ambient temperature -40 ... +70 °C

FestoMFR # NEBS-M12G12-KS-0.5-SM12G12SKU # YLSO46WM1U5M8PJ

Cable designationWith inscription label holder

Mounting positionAny

Product weight87

Electrical connection 1Straight socket, M12x1, 12-pin, A-coded

Electrical connection 2Straight socket, M12x1, 12-pin, A-coded

Operational voltage range DC0, 30

Have questions?Chat on WhatsApp

About This Product

Festo NEBS-M12G12-KS-0.5-SM12G12

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cable designationWith inscription label holder

Mounting positionAny

Product weight87

Electrical connection 1Straight socket, M12x1, 12-pin, A-coded

Electrical connection 2Straight socket, M12x1, 12-pin, A-coded

Operational voltage range DC0, 30

Nominal operating voltage DC30

Current rating at 40° C1.5

Immunity to surge0.8

ShieldingYes

Cable length0.5

Cable characteristicBasic

Test conditions cableBending strength: to Festo standard

Min. cable bending radius85

Bending radius, fixed cable42.5

Cable diameter8.5

Cable diameter tolerance±0.2 mm

Cable structure12 x 0.14 mm²

Connection cross section0.14

Colour code wire insulationPin 1 = brown, Pin 10 = purple, Pin 11 = grey/pink, Pin 12 = red/blue, Pin 2 = blue, Pin 3 = white, Pin 4 = green, Pin 5 = pink, Pin 6 = yellow, Pin 7 = black, Pin 8 = grey, Pin 9 = red

Degree of protectionIP67

Ambient temperature-30, 80

Ambient temperature with moving cable-25, 80

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Corrosion resistance class CRC0 - No corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourBlack

Material union nutDie-cast zinc
