How can I get a price quote for Festo NEBM-SF1W31-EH-5-Q15N-LE28?

You can request a fast quote for Festo NEBM-SF1W31-EH-5-Q15N-LE28 from Yılsa Engineering. Reference part number YLSTYJUI84M2RL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEBM-SF1W31-EH-5-Q15N-LE28 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEBM-SF1W31-EH-5-Q15N-LE28 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEBM-SF1W31-EH-5-Q15N-LE28?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

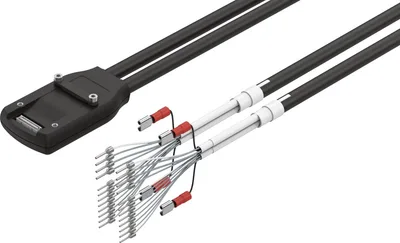

Festo NEBM-SF1W31-EH-5-Q15N-LE28

Motor cable. For stepper and servo motors. For motor controllers. For servo drive. Can be used in a wide temperature range. Suitable for energy chains. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # NEBM-SF1W31-EH-5-Q15N-LE28SKU # YLSTYJUI84M2RL

Conforms to standardDIN 47100

Cable designationWithout inscription label holder

Frequency of connection30

Product weight1480

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Have questions?Chat on WhatsApp

About This Product

Festo NEBM-SF1W31-EH-5-Q15N-LE28

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardDIN 47100

Cable designationWithout inscription label holder

Frequency of connection30

Product weight1480

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typePlug

Electrical connection 1, cable outletAngled

Electrical connection 1, note on cable outlet90°

Electrical connection 1, connector systemConnection pattern F1

Electrical connection 1, number of connections/cores31

Electrical connection 1, used connections/cores31

Electrical connection 1, type of mountingSnap-locking

Electrical connection 1, connection pattern00995929

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores28

Electrical connection 2, used connections/cores28

Operational voltage range DC0, 50

Nominal operating voltage DC24

Current rating at 40° C0.5

Immunity to surge0.25

Cable length5

Cable characteristicSuitable for energy chains

Test conditions cableTest conditions on request

Bending radius, fixed cable49.5

Bending radius, moving cable74.25

Cable diameter9.9

Cable diameter tolerance±0.2 mm

Cable structure1 x (6 x 0.35 mm²) + 2 x (4 x 0.15 mm²)

Nominal cross section conductor0.35

Wire endsWire ferrule

Degree of protectionIP20

Note on degree of protectionIn mounted state

Ambient temperature-20, 75

Ambient temperature with moving cable-5, 70

Storage temperature-25, 55

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Pollution degree1

Corrosion resistance class CRC1 - Low corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourBlack

Material housingPA

Housing colourBlack

Material electrical contactTin-plated copper alloy
