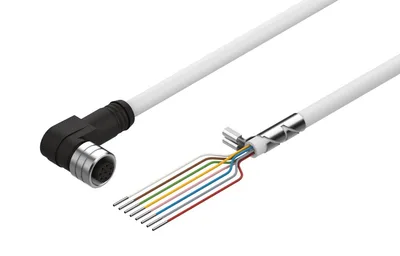

FESTO NEBM-M12W8-E-5-LE8

Encoder cable. For stepper and servo motors. For motor controllers. For servo drive. Can be used in a wide temperature range. Suitable for energy chains. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FESTOMFR # NEBM-M12W8-E-5-LE8SKU # CEY-937FC781B615

Cable designationWithout inscription label holder

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletAngled

Electrical connection 2, functionControl side

Have questions?Chat on WhatsApp

About This Product

FESTO NEBM-M12W8-E-5-LE8

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cable designationWithout inscription label holder

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletAngled

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores8

Electrical connection 1, used connections/cores8

Electrical connection 1, connection pattern00992265

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores8

Electrical connection 2, used connections/cores8

Operational voltage range DC0, 30

Nominal operating voltage DC24

Operational voltage range AC0, 30

Nominal operating voltage AC24

ShieldingYes

Cable length5

Cable characteristicSuitable for energy chains

Bending radius, moving cable68

Cable diameter6.8

Cable structure4 x 2 x 0.14 mm²

Nominal cross section conductor0.14

Wire endsWire ferrule

Degree of protectionIP65

Note on degree of protectionIn mounted state

Ambient temperature-40, 80

Ambient temperature with moving cable-5, 80

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Material cable sheathTPE-U(PUR)

Cable sheath colourGrey
