How can I get a price quote for Festo NEBC-R3G8M22-P-5-N-S-R3G8?

You can request a fast quote for Festo NEBC-R3G8M22-P-5-N-S-R3G8 from Yılsa Engineering. Reference part number YLSUBMEDKFRHJLT. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEBC-R3G8M22-P-5-N-S-R3G8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEBC-R3G8M22-P-5-N-S-R3G8 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEBC-R3G8M22-P-5-N-S-R3G8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

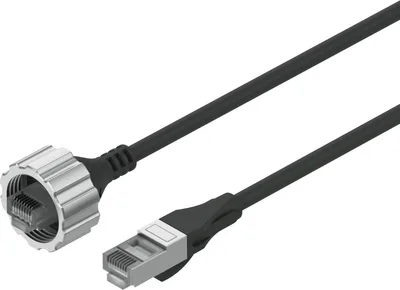

Festo NEBC-R3G8M22-P-5-N-S-R3G8

Connecting cable. Variants in easy-to-clean design. Standard variants, variants with shielding or as a hybrid cable. Variants suitable for energy chains. Variants with Ethernet, CANopen, I-Port or RS232

FestoMFR # NEBC-R3G8M22-P-5-N-S-R3G8SKU # YLSUBMEDKFRHJLT

Conforms to standardIEC 60603-7-3

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E239998

Cable designationWithout inscription label holder

Product weight440

Electrical connection 1, functionField device side

Have questions?Chat on WhatsApp

About This Product

Festo NEBC-R3G8M22-P-5-N-S-R3G8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardIEC 60603-7-3

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E239998

Cable designationWithout inscription label holder

Product weight440

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typePlug

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemRJ45

Electrical connection 1, number of connections/cores8

Electrical connection 1, used connections/cores8

Electrical connection 1, type of mountingScrew-type lock

Electrical connection 1, connection pattern00995653

Electrical connection 2, functionControl side

Electrical connection 2, designSquare

Electrical connection 2, connection typePlug

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemRJ45

Electrical connection 2, number of connections/cores8

Electrical connection 2, used connections/cores8

electrical connection 2, type of mountingSnap-locking

Electrical connection 2, connection pattern00995653

Operational voltage range DC0, 60

Current rating at 40° C1

ShieldingYes

Transmission characteristicsIn accordance with category 5, EN 50173, class D, In accordance with category 5, ISO/IEC 11801, class D

Cable length5

Cable characteristicFor static applications

Bending radius, fixed cable30

Cable diameter5.5

Cable diameter tolerance±0.2 mm

Degree of protectionIP20, IP66, IP67

Note on degree of protectionIn mounted state

Ambient temperature-20, 55

Storage temperature-20, 70

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Corrosion resistance class CRC4 - Very high corrosion stress, (installed)

Material cable sheathPVC

Cable sheath colourBlack

Material housingMakrolon®

Housing colourTransparent

Material screw-type lockHigh-alloy stainless steel

Material sealsTPE-V

Material electrical contactBrass, nickel-plated and gold-plated

Material insulating sheathPVC
