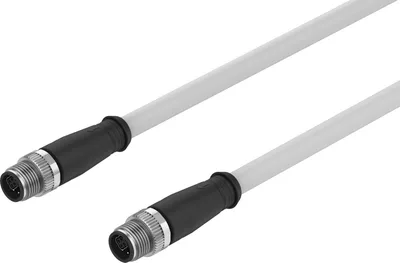

FESTO NEBC-F12G8-KH-2-N-S-F12G8
Connecting cable. Variants in easy-to-clean design. Standard variants, variants with shielding or as a hybrid cable. Variants suitable for energy chains. Variants with Ethernet, CANopen, I-Port or RS232
Based on standardDimensions to EN 61076-2-101
Cable designationWithout inscription label holder
Frequency of connection100
Product weight200
Electrical connection 1, functionField device side, Control side
Electrical connection 1, designRound
About This Product
Connecting cable. Variants in easy-to-clean design. Standard variants, variants with shielding or as a hybrid cable. Variants suitable for energy chains. Variants with Ethernet, CANopen, I-Port or RS232
FESTO NEBC-F12G8-KH-2-N-S-F12G8
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Based on standardDimensions to EN 61076-2-101
Cable designationWithout inscription label holder
Frequency of connection100
Product weight200
Electrical connection 1, functionField device side, Control side
Electrical connection 1, designRound
Electrical connection 1, connection typeHybrid plug
Electrical connection 1, cable outletStraight
Electrical connection 1, connector systemM12x1, Festo-specific coding
Electrical connection 1, number of connections/cores8
Electrical connection 1, used connections/cores8
Electrical connection 1, type of mountingScrew-type lock, size 14 mm, and longitudinal knurl
Electrical connection 1, connection pattern00997723
Electrical connection 2, functionField device side, Control side
Electrical connection 2, designRound
Electrical connection 2, connection typeHybrid plug
Electrical connection 2, cable outletStraight
Electrical connection 2, connector systemM12x1, Festo-specific coding
Electrical connection 2, number of connections/cores8
Electrical connection 2, used connections/cores8
electrical connection 2, type of mountingScrew-type lock, size 14 mm, and longitudinal knurl
Electrical connection 2, connection pattern00997723
Operational voltage range DC0, 30
Current rating at 40° C7
Note on permissible current load at 40°C1.5 A for conductor cross section 0.14 mm²
Immunity to surge0.8
Cable length2
Cable characteristicStandard
Test conditions cableTest conditions on request
Bending radius, fixed cable24
Bending radius, moving cable56
Cable diameter8
Cable diameter tolerance±0.2 mm
Cable structure(1 x (4 x 0.14 mm²)) + 4 x 0.75 mm²
Nominal cross section conductor0.75
Degree of protectionIP65, IP67
Note on degree of protectionIn mounted state
Special characteristicsOil-resistant
Ambient temperature-25, 70
Ambient temperature with moving cable-5, 70
Storage temperature-40, 70
CE mark (see declaration of conformity)In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
LABS (PWIS) conformityVDMA24364-B2-L
Note on materialsRoHS compliant, Free of halogen
Pollution degree3
Corrosion resistance class CRC1 - Low corrosion stress
Material cable sheathTPE-U(PUR)
Cable sheath colourLight grey
Material housingTPE-U(PUR)
Housing colourBlack
Material screw-type lockBrass, nickel-plated
Material electrical contactGold-plated brass
Material insulating sheathPP
