How can I get a price quote for Festo MSB9?

You can request a fast quote for Festo MSB9 from Yılsa Engineering. Reference part number YLSFO5R3H0DPITU. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MSB9 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MSB9 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MSB9?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

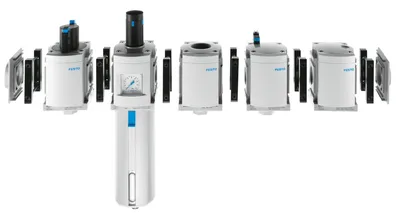

Festo MSB9

Service unit combination. Grid dimension 90 mm. Predefined or freely configurable combinations of service unit components. Depending on the application, combination of filter regulator, filter, lubricator, on/off valve, soft-start valve, branching module

FestoMFR # MSB9SKU # YLSFO5R3H0DPITU

Size9

SeriesMS

Type of actuationElectrical, Manual, Pneumatic

Actuator lockRotary knob with integrated lock

Mounting positionAny, Vertical +/-5°

Grade of filtration0.01, 40

Have questions?Chat on WhatsApp

About This Product

Festo MSB9

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size9

SeriesMS

Type of actuationElectrical, Manual, Pneumatic

Actuator lockRotary knob with integrated lock

Mounting positionAny, Vertical +/-5°

Grade of filtration0.01, 40

Condensate drainManual, rotating, Semi-automatic

DesignProportional standard mist lubricator, Sintered filter with centrifugal separator

Max. condensate volume220

Max. oil capacity490

Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function

Bowl guardIntegrated as metal bowl

Differential pressure displayVisual indicator, With pressure sensor

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure sensor, With pressure gauge

Operating pressure0, 2

Operating pressure0, 20

Operating pressure0, 290

Pressure regulation range0.1, 1.6

Pressure regulation range1, 16

Pressure regulation range14.5, 232

Standard nominal flow rate (standardised to DIN 1343)1400, 18000

Characteristic coil data230 V AC: 50/60 Hz, pick-up power 11.5 VA, holding power 9.1 VA, 24 V DC: 4.5 W, 24 V DC: 8.4 W

Approvalc UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), To EC Machinery Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK regulations for machines, To UK RoHS instructions, To UK regulations for electrical equipment

Explosion protection certification outside the EUEPL Db (GB), EPL Dc (GB), EPL Gb (GB), EPL Gc (GB)

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 2 (UKEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX), Zone 22 (UKEX)

ATEX category gasII 2G, II 3G

ATEX category dustII 2D, II 3D

Explosion ignition protection type for gasEx h IIC T6 Gb X

Explosion ignition protection type for dustEx h IIIC T60°C Db X

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Media temperature-10, 60

Ambient temperature-10, 60

Type of mountingWith accessories

Pneumatic connection, port 1G1/2, G3/4, G1, G1 1/4, G1 1/2, 1/2 NPT, 3/4 NPT, 1 NPT, 1 1/4 NPT, 1 1/2 NPT

Pneumatic connection, port 2G1/2, G3/4, G1, G1 1/4, G1 1/2, 1/2 NPT, 3/4 NPT, 1 NPT, 1 1/4 NPT, 1 1/2 NPT

Pneumatic connection, port 3G1, 1 NPT

Material sealsNBR

Material housingDie-cast aluminium

Material bowlWrought aluminium alloy

Accessories 1

Genuine accessories that can be used with the Festo MSB9 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
