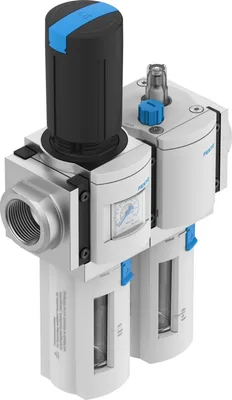

Festo MSB6-AGF:J1:M1-WP

Service unit combination. Grid dimension 62 mm. Predefined or freely configurable combinations of service unit components. Depending on the application, combination of filter regulator, filter, lubricator, on/off valve, soft-start valve, branching module

FestoMFR # MSB6-AGF:J1:M1-WPSKU # YLSQYODGI5I0GKY

Size6

SeriesMS

Mounting positionVertical +/-5°

Condensate drainManual, rotating

DesignFilter-regulator-lubricator

Max. condensate volume38

Have questions?Chat on WhatsApp

About This Product

Festo MSB6-AGF:J1:M1-WP

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

SeriesMS

Actuator lockRotary knob with detent, can be closed with accessories

Mounting positionVertical +/-5°

Condensate drainManual, rotating

DesignFilter-regulator-lubricator

Max. condensate volume38

Grade of filtration40

Max. oil capacity75

Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function

Bowl guardPlastic bowl guard

Symbol00991761

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

Operating pressure0.15, 2

Operating pressure1.5, 20

Pressure regulation range0.5, 12

Max. standard flow rate3700

Operating mediumCompressed air to ISO 8573-1:2010 [-:4:-], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:-]

Media temperature-10, 60

Ambient temperature-10, 60

Product weight1930

Type of mountingWith mounting bracket

Pneumatic connection, port 1G1

Pneumatic connection, port 2G1

Material sealsNBR

Material filterPackaging unit

Material housingDie-cast aluminium

Material bowlMakrolon®

Accessories 8

Genuine accessories that can be used with the Festo MSB6-AGF:J1:M1-WP motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS6-AGF	Connecting plate SET · Mounting accessories
MS6-AGB	Sub-base-SET · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-LFP-E	Filter cartridge · General accessories
MS6-AEND1	Mounting plate · Mounting accessories
MS6-END	Cover cap · Mounting accessories
