How can I get a price quote for Festo MSB6-AGE:C3:J1-WP?

You can request a fast quote for Festo MSB6-AGE:C3:J1-WP from Yılsa Engineering. Reference part number YLSX7QIIBKNNW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MSB6-AGE:C3:J1-WP in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MSB6-AGE:C3:J1-WP genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MSB6-AGE:C3:J1-WP?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

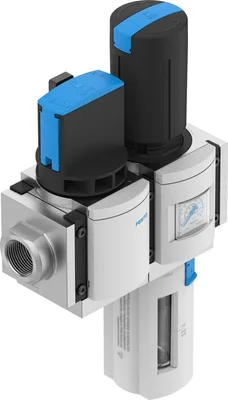

Festo MSB6-AGE:C3:J1-WP

Service unit combination. Grid dimension 62 mm. Predefined or freely configurable combinations of service unit components. Depending on the application, combination of filter regulator, filter, lubricator, on/off valve, soft-start valve, branching module

FestoMFR # MSB6-AGE:C3:J1-WPSKU # YLSX7QIIBKNNW

Size6

SeriesMS

Mounting positionVertical +/-5°

Grade of filtration40

Condensate drainFully automatic

DesignOn/off valve-filter regulator

Have questions?Chat on WhatsApp

About This Product

Festo MSB6-AGE:C3:J1-WP

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

SeriesMS

Actuator lockRotary knob with detent, can be closed with accessories

Mounting positionVertical +/-5°

Grade of filtration40

Condensate drainFully automatic

DesignOn/off valve-filter regulator

Max. condensate volume38

Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function

Bowl guardPlastic bowl guard

Symbol00991554

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

Operating pressure0.15, 2

Operating pressure1.5, 20

Operating pressure21.75, 290

Pressure regulation range0.05, 1.2

Pressure regulation range0.5, 12

Pressure regulation range7.25, 174

Max. standard flow rate4300

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4]

Media temperature-10, 60

Ambient temperature-10, 60

Product weight1910

Type of mountingWith mounting bracket

Pneumatic connection, port 1G3/4

Pneumatic connection, port 2G3/4

Material filterPackaging unit

Material housingDie-cast aluminium

Material bowlMakrolon®

Accessories 8

Genuine accessories that can be used with the Festo MSB6-AGE:C3:J1-WP motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS6-AGF	Connecting plate SET · Mounting accessories
MS6-AGB	Sub-base-SET · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-LFP-E	Filter cartridge · General accessories
MS6-AEND1	Mounting plate · Mounting accessories
MS6-END	Cover cap · Mounting accessories
