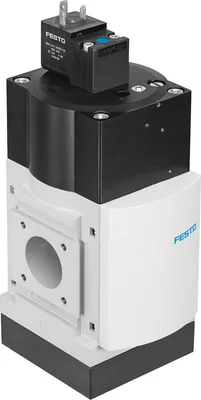

FESTO MS9-SV-G-C-V24-S-VS

Soft start/quick exhaust valve. With safety functions. For reducing pressure quickly and reliably and for building up pressure gradually. Adjustable pressure build-up time. Adjustable switch-through pressure. Supply voltage 24 V DC. Standard nominal flow rate <=20.000 l/min with grid dimension 90 mm

FESTOMFR # MS9-SV-G-C-V24-S-VSSKU # CEY-937FC781CA8D

SeriesMS

Size9

Grid dimension90

Safety functionExhaust

DesignPiston gate valve

Type of actuationElectrical

Have questions?Chat on WhatsApp

About This Product

FESTO MS9-SV-G-C-V24-S-VS

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SeriesMS

Size9

Grid dimension90

Safety functionExhaust

Performance Level (PL)Exhausting/up to category 1, performance level c

DesignPiston gate valve

Type of actuationElectrical

Sealing principleSoft

Exhaust-air functionCannot be throttled

Manual overrideNone

Type of resetMechanical spring

Type of pilotingPiloted

Symbol00995240

Valve function3/2-way, single solenoid, closed, Soft-start function

Operating pressure0.35, 1.6

Operating pressure3.5, 16

Standard nominal flow rate (standardised to DIN 1343)8300, 16550

Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)19730, 21720

Duty cycle100%

Characteristic coil data24 V DC: 8.4 W

Nominal operating voltage DC24

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1

Sound pressure level93

Degree of protectionIP65

Media temperature0, 60

Ambient temperature0, 60

Storage temperature0, 60

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

CE mark (see declaration of conformity)To EU EMC Directive, To EC Machinery Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK regulations for machines, To UK RoHS instructions

Type of mountingEither:, Inline installation, With accessories

Mounting positionAny

Product weight3200

Pressure gauge connectionG1/8, G1/4

Pneumatic connection, port 3G1, 1 NPT

Electrical connectionType A, Plug, To EN 175301-803, Square design

Material housingDie-cast aluminium

Material sealsNBR

Material piston slideBrass

Material coverWrought aluminium alloy

Material underneath coverProcess automation

Accessories 22

Genuine accessories that can be used with the FESTO MS9-SV-G-C-V24-S-VS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KMC-1-24DC-2,5-LED	Connecting cable · Connecting cables
KMC-1-24DC-5-LED	Connecting cable · Connecting cables
MSSD-C	Plug socket · Electrical accessories
U-1-B	Silencer · Silencer
KMC-1-24-10-LED	Connecting cable · Connecting cables
MSSD-C-M16	Plug socket · Electrical accessories
MS9-WP	Mounting bracket · Mounting accessories
MS9-WPM	Mounting bracket · Mounting accessories
MS9-WPB	Mounting bracket · Mounting accessories
MS9-MV	Module connector · Mounting accessories
MS6-9-ARMV	Module connector · Mounting accessories
MS9-RMV	Module connector · Mounting accessories
MS9-12-ARMV	Module connector · Mounting accessories
MS9-AGD	Sub-base-SET · Mounting accessories
MS9-AGE	Sub-base-SET · Mounting accessories
MS9-AGF	Sub-base-SET · Mounting accessories
MS9-AGG	Sub-base-SET · Mounting accessories
MS9-AGH	Sub-base-SET · Mounting accessories
MS9-SV-MK	Covering · Mounting accessories
MS9-SV-MH	Covering · Mounting accessories
MS6-9-ARMV-EX	Module connector · Mounting accessories
MS9-RB-10	Covering kit · Mounting accessories
