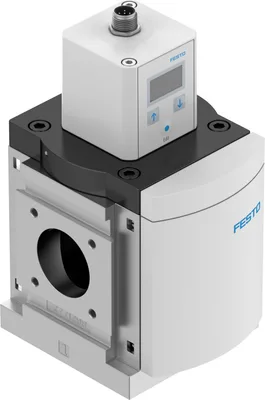

Festo MS9-LR-G-PI10-VS

Pressure regulator. High flow rate performance with minimal pressure drop. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. With or without secondary exhausting. Lockable rotary knob. Optional pressure sensor and rotary knob pressure gauge. Sustainable operation thanks to reduced pressure level. Standard nominal flow rate <=20.000 l/min with grid dimension 90 mm

FestoMFR # MS9-LR-G-PI10-VSSKU # YLSD381BVCQSNYC

Size9

SeriesMS

Mounting positionAny

DesignPiloted precision pressure regulator

Symbol00995303

Operating pressure6, 11

Have questions?Chat on WhatsApp

About This Product

Festo MS9-LR-G-PI10-VS

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size9

SeriesMS

Mounting positionAny

DesignPiloted precision pressure regulator

Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting

Symbol00995303

Operating pressure6, 11

Pressure regulation range0.1, 10

Max. pressure hysteresis0.05

Operational voltage range DC21.6, 26.4

Max. electrical power consumption4.2

Max. current consumption0.16

Nominal operating voltage DC24

Residual ripple10%

Signal range analogue input4 - 20 mA

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1

Storage temperature-10, 60

Media temperature10, 50

Ambient temperature0, 60

Product weight1400

Type of mountingWith accessories

Material coveringReinforced PA

Note on materialsRoHS compliant

Material sub-baseDie-cast aluminium

Material mounting bracketDie-cast aluminium

Material housingDie-cast aluminium

Material module connectorDie-cast aluminium

Material membraneNBR

Material valve stemWrought aluminium alloy, NBR, POM

Accessories 19

Genuine accessories that can be used with the Festo MS9-LR-G-PI10-VS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS9-WP	Mounting bracket · Mounting accessories
MS9-WPM	Mounting bracket · Mounting accessories
MS9-WPB	Mounting bracket · Mounting accessories
MS9-MV	Module connector · Mounting accessories
MS6-9-ARMV	Module connector · Mounting accessories
MS9-RMV	Module connector · Mounting accessories
MS9-12-ARMV	Module connector · Mounting accessories
MS9-AGD	Sub-base-SET · Mounting accessories
MS9-AGE	Sub-base-SET · Mounting accessories
MS9-AGF	Sub-base-SET · Mounting accessories
MS9-AGG	Sub-base-SET · Mounting accessories
MS9-AGH	Sub-base-SET · Mounting accessories
MS9-AQR	Sub-base-SET · Mounting accessories
MS9-AQS	Sub-base-SET · Mounting accessories
MS9-AQT	Sub-base-SET · Mounting accessories
MS9-AQU	Sub-base-SET · Mounting accessories
MS9-AQV	Sub-base-SET · Mounting accessories
MS6-9-ARMV-EX	Module connector · Mounting accessories
MS9-RB-10	Covering kit · Mounting accessories
