How can I get a price quote for FESTO MS9-LR-G-D5-AG-BAR-AS?

You can request a fast quote for FESTO MS9-LR-G-D5-AG-BAR-AS from Yılsa Engineering. Reference part number CEY-937FC781CFE0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MS9-LR-G-D5-AG-BAR-AS in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MS9-LR-G-D5-AG-BAR-AS genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MS9-LR-G-D5-AG-BAR-AS?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

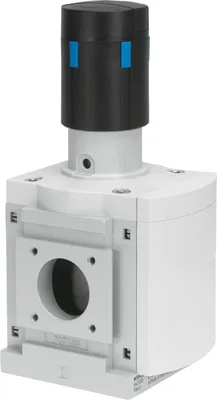

FESTO MS9-LR-G-D5-AG-BAR-AS

Pressure regulator. High flow rate performance with minimal pressure drop. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. With or without secondary exhausting. Lockable rotary knob. Optional pressure sensor and rotary knob pressure gauge. Sustainable operation thanks to reduced pressure level. Standard nominal flow rate <=20.000 l/min with grid dimension 90 mm

FESTOMFR # MS9-LR-G-D5-AG-BAR-ASSKU # CEY-937FC781CFE0

Size9

SeriesMS

Actuator lockcan be closed with accessories

Mounting positionAny

DesignPiloted diaphragm regulator

Symbol00991536

Have questions?Chat on WhatsApp

About This Product

FESTO MS9-LR-G-D5-AG-BAR-AS

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size9

SeriesMS

Actuator lockcan be closed with accessories

Mounting positionAny

DesignPiloted diaphragm regulator

Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function

Symbol00991536

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

Operating pressure1, 20

Pressure regulation range0.5, 4

Max. pressure hysteresis0.4

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1

Storage temperature-10, 60

Media temperature-10, 60

Ambient temperature-10, 60

Product weight1400

Type of mountingWith accessories

Material coveringReinforced PA

Note on materialsRoHS compliant

Material sub-baseDie-cast aluminium

Material mounting bracketDie-cast aluminium

Material housingDie-cast aluminium

Material module connectorDie-cast aluminium

Material membraneNBR

Material valve stemWrought aluminium alloy, NBR, POM

Accessories 20

Genuine accessories that can be used with the FESTO MS9-LR-G-D5-AG-BAR-AS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
LRVS-D	Padlock · General accessories
MS9-WP	Mounting bracket · Mounting accessories
MS9-WPM	Mounting bracket · Mounting accessories
MS9-WPB	Mounting bracket · Mounting accessories
MS9-MV	Module connector · Mounting accessories
MS6-9-ARMV	Module connector · Mounting accessories
MS9-RMV	Module connector · Mounting accessories
MS9-12-ARMV	Module connector · Mounting accessories
MS9-AGD	Sub-base-SET · Mounting accessories
MS9-AGE	Sub-base-SET · Mounting accessories
MS9-AGF	Sub-base-SET · Mounting accessories
MS9-AGG	Sub-base-SET · Mounting accessories
MS9-AGH	Sub-base-SET · Mounting accessories
MS9-AQR	Sub-base-SET · Mounting accessories
MS9-AQS	Sub-base-SET · Mounting accessories
MS9-AQT	Sub-base-SET · Mounting accessories
MS9-AQU	Sub-base-SET · Mounting accessories
MS9-AQV	Sub-base-SET · Mounting accessories
MS6-9-ARMV-EX	Module connector · Mounting accessories
MS9-RB-10	Covering kit · Mounting accessories
