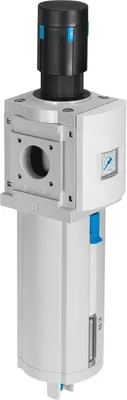

FESTO MS9-LFR-G-D6-CUM-DI-AG-BAR-AS

Filter regulator. MS9-LFR: piloted or directly actuated filter diaphragm regulator. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. Good particle and condensate separation. With or without secondary exhausting. High flow rate. Lockable rotary knob. Return flow option for exhausting from output 2 to input 1 already integrated. Standard nominal flow rate <=20.000 l/min with grid dimension 90 mm

FESTOMFR # MS9-LFR-G-D6-CUM-DI-AG-BAR-ASSKU # CEY-937FC781CFEA

Size9

SeriesMS

Actuator lockcan be closed with accessories

Mounting positionVertical +/-5°

Grade of filtration5

Condensate drainManual, rotating

Have questions?Chat on WhatsApp

About This Product

FESTO MS9-LFR-G-D6-CUM-DI-AG-BAR-AS

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size9

SeriesMS

Actuator lockcan be closed with accessories

Mounting positionVertical +/-5°

Grade of filtration5

Condensate drainManual, rotating

DesignDirectly actuated filter diaphragm regulator

Max. condensate volume220

Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function

Degree of condensate separation75

Symbol00991589

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

Operating pressure1, 20

Pressure regulation range0.5, 7

Max. pressure hysteresis0.4

Operating mediumInert gas

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1

Storage temperature-10, 60

Air purity class at outputCompressed air to ISO 8573-1:2010 [6:4:4]

Media temperature-10, 60

Ambient temperature-10, 60

Pore size5

Product weight2400

Type of mountingWith accessories

Material coveringReinforced PA

Material spin discPOM

Material filter carrierPOM

Note on materialsRoHS compliant

Material sub-baseDie-cast aluminium

Material mounting bracketDie-cast aluminium

Material filterPackaging unit

Material housingDie-cast aluminium

Material module connectorDie-cast aluminium

Material membraneNBR

Material bowlWrought aluminium alloy

Material cup sealNBR

Material screenProcess automation

Material separating platePOM

Material valve stemWrought aluminium alloy, NBR, POM

Accessories 21

Genuine accessories that can be used with the FESTO MS9-LFR-G-D6-CUM-DI-AG-BAR-AS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
LRVS-D	Padlock · General accessories
MS9-WP	Mounting bracket · Mounting accessories
MS9-WPM	Mounting bracket · Mounting accessories
MS9-WPB	Mounting bracket · Mounting accessories
MS9-MV	Module connector · Mounting accessories
MS6-9-ARMV	Module connector · Mounting accessories
MS9-RMV	Module connector · Mounting accessories
MS9-12-ARMV	Module connector · Mounting accessories
MS9-AGD	Sub-base-SET · Mounting accessories
MS9-AGE	Sub-base-SET · Mounting accessories
MS9-AGF	Sub-base-SET · Mounting accessories
MS9-AGG	Sub-base-SET · Mounting accessories
MS9-AGH	Sub-base-SET · Mounting accessories
MS9-AQR	Sub-base-SET · Mounting accessories
MS9-AQS	Sub-base-SET · Mounting accessories
MS9-AQT	Sub-base-SET · Mounting accessories
MS9-AQU	Sub-base-SET · Mounting accessories
MS9-AQV	Sub-base-SET · Mounting accessories
MS9-LFP-C	Filter cartridge · General accessories
MS6-9-ARMV-EX	Module connector · Mounting accessories
MS9-RB-10	Covering kit · Mounting accessories
