How can I get a price quote for Festo MS6-LR?

You can request a fast quote for Festo MS6-LR from Yılsa Engineering. Reference part number YLSMQO8KOIROD7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MS6-LR in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MS6-LR genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MS6-LR?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

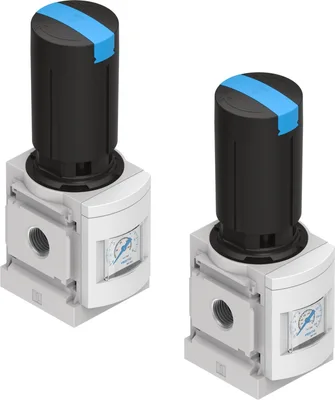

Festo MS6-LR

Pressure regulator. High flow rate performance with minimal pressure drop. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. With or without secondary exhausting. Lockable rotary knob. Optional pressure sensor and rotary knob pressure gauge. Sustainable operation thanks to reduced pressure level. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm

FestoMFR # MS6-LRSKU # YLSMQO8KOIROD7

Size6

SeriesMS

Mounting positionAny

Operating pressure0.8, 20

Pressure regulation range0.3, 16

Max. pressure hysteresis0.25

Have questions?Chat on WhatsApp

About This Product

Festo MS6-LR

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

SeriesMS

Actuator lockRotary knob with detent, Rotary knob with integrated lock, can be closed with accessories

Mounting positionAny

DesignPressure regulator with pressure gauge, Pressure regulator without pressure gauge

Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting

Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/4, Prepared for G1/8, With pressure sensor, With pressure gauge, Via pressure gauge in the rotary knob

Operating pressure0.8, 20

Pressure regulation range0.3, 16

Max. pressure hysteresis0.25

Standard nominal flow rate (standardised to DIN 1343)2200, 7500

Approvalc UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T6 Gb X

Explosion ignition protection type for dustEx h IIIC T60°C Db X

Explosion ambient temperature-10°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Suitable for use with foodSee supplementary material information

Media temperature-10, 60

Ambient temperature-10, 60

Type of mountingWith accessories

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Material membraneNBR

Material separating platePOM

Accessories 38

Genuine accessories that can be used with the Festo MS6-LR motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
LRVS-D	Padlock · General accessories
MS6-WP	Mounting bracket · Mounting accessories
MS6-WB	Mounting bracket · Mounting accessories
MS6-AGF	Connecting plate SET · Mounting accessories
MS6-WPM-D	Mounting bracket · Mounting accessories
MS6-WR	Mounting bracket · Mounting accessories
MS6-AGB	Sub-base-SET · Mounting accessories
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-WPM-2D	Mounting bracket · Mounting accessories
MS6-WRS	Hex nut · Mounting accessories
MS6-MVM	Module connector · Mounting accessories
MS6-AEND1	Mounting plate · Mounting accessories
MS6-END	Cover cap · Mounting accessories
MS6-WP-EX	Mounting bracket · Mounting accessories
MS6-RMV	Module connector · Mounting accessories
MS6-E-IPM-40-80	Power supply module · Mounting accessories
MS6-E-IPM-80-80	Power supply module · Mounting accessories
MS6-A-IPM-80	Branching module · Mounting accessories
MS6-A-RMV-IPM-80	Branching module · Mounting accessories
MS6-9-ARMV	Module connector · Mounting accessories
MS6-RMV-EX	Module connector · Mounting accessories
MS6-9-ARMV-EX	Module connector · Mounting accessories
MS6-9-AMV	Module connector · Mounting accessories
MS6-9-AMV-EX	Module connector · Mounting accessories
MS6-WPG	Wall mounting-SET · Mounting accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-LE5	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE5	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE4	Connecting cable · Connecting cables
MS6-MV1	Module connector · Mounting accessories
MS6-RB-10	Covering kit · Mounting accessories
MS6-WP-F1A	Mounting bracket · Mounting accessories
