How can I get a price quote for Festo MS6-LFR-AGF-D7-E-R-M-MPA?

You can request a fast quote for Festo MS6-LFR-AGF-D7-E-R-M-MPA from Yılsa Engineering. Reference part number YLSEU48CFHPY58. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MS6-LFR-AGF-D7-E-R-M-MPA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MS6-LFR-AGF-D7-E-R-M-MPA genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MS6-LFR-AGF-D7-E-R-M-MPA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

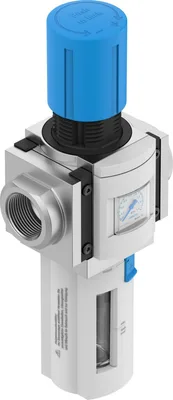

Festo MS6-LFR-AGF-D7-E-R-M-MPA

Filter regulator. Directly actuated diaphragm control valve. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. Good particle and condensate separation. With or without secondary exhausting. High flow rate. Lockable rotary knob. Return flow option for exhausting from output 2 to input 1 already integrated. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm

FestoMFR # MS6-LFR-AGF-D7-E-R-M-MPASKU # YLSEU48CFHPY58

Size6

SeriesMS

Actuator lockRotary knob with detent

Mounting positionVertical +/-5°

Grade of filtration40

Condensate drainManual, rotating

Have questions?Chat on WhatsApp

About This Product

Festo MS6-LFR-AGF-D7-E-R-M-MPA

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

SeriesMS

Actuator lockRotary knob with detent

Mounting positionVertical +/-5°

Grade of filtration40

Condensate drainManual, rotating

DesignFilter regulator with pressure gauge

Max. condensate volume38

Controller functionOutput pressure constant, With secondary exhausting

Bowl guardPlastic bowl guard

Degree of condensate separation75

Symbol00991589

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

Operating pressure0, 2

Operating pressure0, 20

Pressure regulation range0.5, 12

Max. pressure hysteresis0.025

Max. pressure hysteresis0.25

Max. pressure hysteresis3.625

Standard nominal flow rate (standardised to DIN 1343)4500

Operating mediumCompressed air to ISO 8573-1:2010 [-:9:-], Inert gas

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Suitable for use with foodSee supplementary material information

Air purity class at outputCompressed air to ISO 8573-1:2010 [7:8:4]

Media temperature-10, 60

Ambient temperature-10, 60

Pore size40

Product weight1175

Type of mountingWith accessories

Pneumatic connection, port 1G1

Pneumatic connection, port 2G1

Note on materialsRoHS compliant

Material sub-baseDie-cast aluminium

Material control panelProcess automation, POM

Material sealsNBR

Material filterPackaging unit

Material housingDie-cast aluminium

Material membraneNBR

Material bowlMakrolon®

Material separating platePOM

Accessories 16

Genuine accessories that can be used with the Festo MS6-LFR-AGF-D7-E-R-M-MPA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS6-WP-F1A	Mounting bracket · Mounting accessories
MS6-AGF	Connecting plate SET · Mounting accessories
MS6-WP-EX	Mounting bracket · Mounting accessories
MS6-WPM-D	Mounting bracket · Mounting accessories
MS6-WR	Mounting bracket · Mounting accessories
MS6-AGB	Sub-base-SET · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-WPM-2D	Mounting bracket · Mounting accessories
MS6-WRS	Hex nut · Mounting accessories
MS6-WB	Mounting bracket · Mounting accessories
MS6-WP	Mounting bracket · Mounting accessories
MS6-LFP-E	Filter cartridge · General accessories
MS6-AEND1	Mounting plate · Mounting accessories
MS6-END	Cover cap · Mounting accessories
