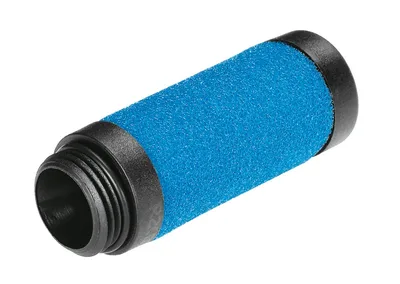

FESTO MS6-LFM-A

Micro-filter cartridge

FESTOMFR # MS6-LFM-ASKU # CEY-937FC7820D5F

Size6

Based on standardISO 12500-1, ISO 12500-3

SeriesMS

Grade of filtration0.01

LABS (PWIS) conformityVDMA24364-B1/B2-L

MPPS0.05

Have questions?Chat on WhatsApp

About This Product

FESTO MS6-LFM-A (Micro-filter cartridge) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO MS6-LFM-A — price, stock availability and technical specifications.

FESTO MS6-LFM-A

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

Based on standardISO 12500-1, ISO 12500-3

SeriesMS

Grade of filtration0.01

Max. standard flow rate for clean air class900

Min. standard flow rate for clean air class135

Operating mediumCompressed air to ISO 8573-1:2010 [6:-:4], Inert gas

LABS (PWIS) conformityVDMA24364-B1/B2-L

Air purity class at outputCompressed air to ISO 8573-1:2010 [3:-:2]

Fractional filtration efficiency (0,1 - 0,5 µm)99.995

MPPS0.05

Filter efficiency MPPS99.95

Residual oil content0.01

Accessories 13

Genuine accessories that can be used with the FESTO MS6-LFM-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS6-AGF	Connecting plate SET · Mounting accessories
MS6-WPM-D	Mounting bracket · Mounting accessories
MS6-AGB	Sub-base-SET · Mounting accessories
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-WPM-2D	Mounting bracket · Mounting accessories
MS6-WP	Mounting bracket · Mounting accessories
MS6-WB	Mounting bracket · Mounting accessories
MS6-AEND1	Mounting plate · Mounting accessories
MS6-END	Cover cap · Mounting accessories
MS6-WP-EX	Mounting bracket · Mounting accessories
MS6-WP-F1A	Mounting bracket · Mounting accessories
