How can I get a price quote for Festo MS6-LF-AGF-E-R-V?

You can request a fast quote for Festo MS6-LF-AGF-E-R-V from Yılsa Engineering. Reference part number YLSRHPNYBCAZRLW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MS6-LF-AGF-E-R-V in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MS6-LF-AGF-E-R-V genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MS6-LF-AGF-E-R-V?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

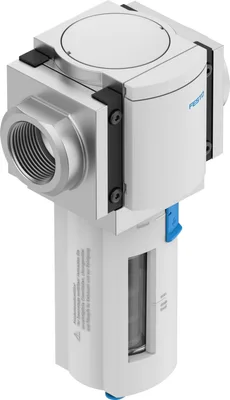

Festo MS6-LF-AGF-E-R-V

Filter. Grid dimension 62 mm. Good particle and condensate separation. High flow rate performance with minimal pressure drop. Available with manual, semi-automatic, fully automatic or fully automatic, electrically actuated condensate drain

FestoMFR # MS6-LF-AGF-E-R-VSKU # YLSRHPNYBCAZRLW

Size6

SeriesMS

Mounting positionVertical +/-5°

Grade of filtration40

Condensate drainFully automatic

Bowl guardPlastic bowl guard

Have questions?Chat on WhatsApp

About This Product

Festo MS6-LF-AGF-E-R-V

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

SeriesMS

Mounting positionVertical +/-5°

Grade of filtration40

Condensate drainFully automatic

DesignSintered filter with centrifugal separator

Bowl guardPlastic bowl guard

Degree of condensate separation75

Symbol00991520

Operating pressure0.2, 1.2

Operating pressure2, 12

Operating pressure29, 174

Standard nominal flow rate (standardised to DIN 1343)4100

Operating mediumCompressed air to ISO 8573-1:2010 [7:9:-], Inert gas

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Suitable for use with foodSee supplementary material information

Air purity class at outputCompressed air to ISO 8573-1:2010 [7:8:4]

Media temperature-10, 60

Ambient temperature-10, 60

Pore size40

Product weight900

Type of mountingWith accessories

Pneumatic connection, port 1G1

Pneumatic connection, port 2G1

Note on materialsRoHS compliant

Material sub-baseDie-cast aluminium

Material sealsNBR

Material filterPackaging unit

Material housingDie-cast aluminium

Material bowlMakrolon®

Material separating platePOM

Accessories 14

Genuine accessories that can be used with the Festo MS6-LF-AGF-E-R-V motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS6-WP-F1A	Mounting bracket · Mounting accessories
MS6-AGF	Connecting plate SET · Mounting accessories
MS6-WP-EX	Mounting bracket · Mounting accessories
MS6-WPM-D	Mounting bracket · Mounting accessories
MS6-AGB	Sub-base-SET · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-WPM-2D	Mounting bracket · Mounting accessories
MS6-WB	Mounting bracket · Mounting accessories
MS6-WP	Mounting bracket · Mounting accessories
MS6-LFP-E	Filter cartridge · General accessories
MS6-AEND1	Mounting plate · Mounting accessories
MS6-END	Cover cap · Mounting accessories
