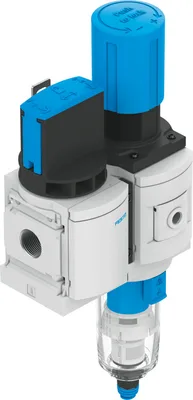

Festo MS6-EM1FR-1/2-D6-C-P-VC-A8-WPE-B

Service unit. Grid dimension 40, 62 mm. Combination of on/off valve and filter regulator. With manual or fully automatic condensate drain. For filtered and unlubricated compressed air supply. Supply pressure can be switched on or off. Output pressure is continuously adjustable within the pressure regulation range

FestoMFR # MS6-EM1FR-1/2-D6-C-P-VC-A8-WPE-BSKU # YLSXS0O9UUTH78S

Size6

SeriesMS

Mounting positionVertical +/-5°

Operating pressure0.1, 1

Operating pressure1, 10

Operating pressure14.5, 145

Have questions?Chat on WhatsApp

About This Product

Festo MS6-EM1FR-1/2-D6-C-P-VC-A8-WPE-B

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

SeriesMS

Mounting positionVertical +/-5°

Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/8

Operating pressure0.1, 1

Operating pressure1, 10

Operating pressure14.5, 145

Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)3600

Standard nominal flow rate (standardised to DIN 1343)4750

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumCompatibility with ester oil not guaranteed

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-5, 50

Media temperature5, 50

Ambient temperature5, 50

Product weight1250

Type of mountingWith mounting bracket, With accessories

Note on materialsRoHS compliant

Accessories 16

Genuine accessories that can be used with the Festo MS6-EM1FR-1/2-D6-C-P-VC-A8-WPE-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS6-MV1	Module connector · Mounting accessories
PUN-H-16X2,5-NT	Plastic tubing · Tubes
PUN-H-16X2,5-BL	Plastic tubing · Tubes
LRVS-D	Padlock · General accessories
PUN-H-16X2,5-SW	Plastic tubing · Tubes
PAGN-26-10-G18S	Pressure gauge · General accessories
PAGN-26-1M-G18S	Pressure gauge · General accessories
U-1/2	Silencer · Silencer
QS-G1/2-16	Push-in fitting · Fittings
QSL-G1/2-16	Push-in L-fitting · Fittings
U-1/2-B	Silencer · Silencer
U-1/2-20	Silencer · Silencer
AMTE-M-LH-G12	Silencer · Silencer
AMTE-M-H-G12	Silencer · Silencer
MS6-WPE-B	Wall mounting kit · Mounting accessories
MS6-MV1-F1A	Module connector · Mounting accessories
