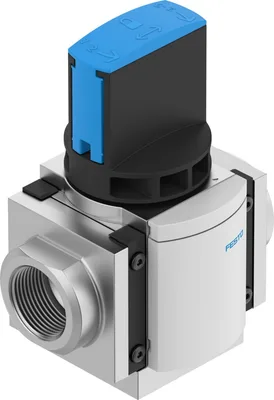

Festo MS6-EM1-AGF

On/off valve. Manual 3/2-way valve for pressurising and exhausting pneumatic systems. A silencer can be attached or the exhaust air ducted at port 3. Switching position is immediately recognisable. Optionally with pressure gauge and pressure sensor. Variants recommended for production systems for manufacturing lithium-ion batteries. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm

FestoMFR # MS6-EM1-AGFSKU # YLSQPJILTU5WO9

SeriesMS

Size6

DesignRotary switching valve

Type of actuationManual

Exhaust-air functionCannot be throttled

Actuator lockcan be closed with accessories

Have questions?Chat on WhatsApp

About This Product

Festo MS6-EM1-AGF

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SeriesMS

Size6

DesignRotary switching valve

Type of actuationManual

Exhaust-air functionCannot be throttled

Actuator lockcan be closed with accessories

Type of pilotingDirect

Symbol00991670

Valve function3/2-way, double solenoid

Operating pressure0, 1.8

Operating pressure0, 18

C value30.8

b value0.57

Standard nominal flow rate (standardised to DIN 1343)8700

Standard nominal flow rate 2-36200

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Ambient temperature-10, 60

Suitable for use with foodSee supplementary material information

Type of mountingEither:, Inline installation, With accessories

Mounting positionAny

Flow directionNon-reversible

Product weight880

Pneumatic connection, port 1G1

Pneumatic connection, port 2G1

Pneumatic connection, port 3G1/2

Material sealsTPE-U(PU)

Material housingDie-cast aluminium

Accessories 13

Genuine accessories that can be used with the Festo MS6-EM1-AGF motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS6-WP-F1A	Mounting bracket · Mounting accessories
MS6-AGF	Connecting plate SET · Mounting accessories
MS6-WP-EX	Mounting bracket · Mounting accessories
MS6-WPM-D	Mounting bracket · Mounting accessories
MS6-AGB	Sub-base-SET · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-WPM-2D	Mounting bracket · Mounting accessories
MS6-WB	Mounting bracket · Mounting accessories
MS6-WP	Mounting bracket · Mounting accessories
MS6-AEND1	Mounting plate · Mounting accessories
MS6-END	Cover cap · Mounting accessories
