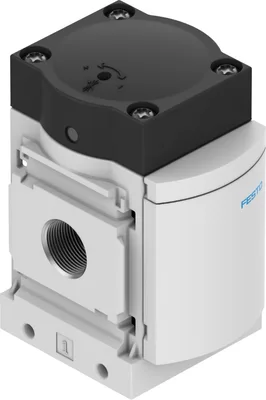

Festo MS6-DL

Soft-start valve. 2/2-way valve for slowly pressurising pneumatic systems (for use with on/off valves EM(1) and EE). For building up pressure gradually. Adjustable pressure build-up time. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm

FestoMFR # MS6-DLSKU # YLSXXT1KA5RJOR9

Exhaust-air functionCan be throttled

Type of actuationPneumatic

Mounting positionAny

Manual overrideNone

DesignPiston seat

Type of resetMechanical spring

Have questions?Chat on WhatsApp

About This Product

Festo MS6-DL

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Exhaust-air functionCan be throttled

Type of actuationPneumatic

Mounting positionAny

Manual overrideNone

DesignPiston seat

Type of resetMechanical spring

Type of pilotingDirect

Pilot air supplyExternal

Flow directionNon-reversible

Valve function2/2

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure sensor

Operating pressure4, 18

Standard nominal flow rate (standardised to DIN 1343)2600, 6450

Approvalc UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protection certification outside the EUEPL Gb (GB)

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T6 Gb X

Explosion ignition protection type for dustEx h IIIC T60°C Db X

Explosion ambient temperature-10°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitable for use with foodSee supplementary material information

Media temperature-10, 60

Ambient temperature-10, 60

Product weight650

Type of mountingWith accessories

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Accessories 27

Genuine accessories that can be used with the Festo MS6-DL motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS6-WP	Mounting bracket · Mounting accessories
MS6-WB	Mounting bracket · Mounting accessories
MS6-AGF	Connecting plate SET · Mounting accessories
MS6-WPM-D	Mounting bracket · Mounting accessories
MS6-AGB	Sub-base-SET · Mounting accessories
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-WPM-2D	Mounting bracket · Mounting accessories
MS6-MVM	Module connector · Mounting accessories
MS6-AEND1	Mounting plate · Mounting accessories
MS6-END	Cover cap · Mounting accessories
MS6-WP-EX	Mounting bracket · Mounting accessories
MS6-RMV	Module connector · Mounting accessories
MS6-E-IPM-40-80	Power supply module · Mounting accessories
MS6-E-IPM-80-80	Power supply module · Mounting accessories
MS6-A-IPM-80	Branching module · Mounting accessories
MS6-A-RMV-IPM-80	Branching module · Mounting accessories
MS6-9-ARMV	Module connector · Mounting accessories
MS6-RMV-EX	Module connector · Mounting accessories
MS6-9-ARMV-EX	Module connector · Mounting accessories
MS6-9-AMV	Module connector · Mounting accessories
MS6-9-AMV-EX	Module connector · Mounting accessories
MS6-WPG	Wall mounting-SET · Mounting accessories
MS6-MV1	Module connector · Mounting accessories
MS6-RB-10	Covering kit · Mounting accessories
MS6-WP-F1A	Mounting bracket · Mounting accessories
