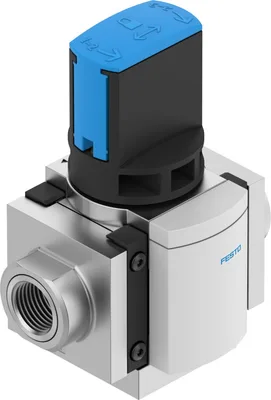

Festo MS4N-EM1-AQP

On/off valve. With NPT connecting thread. Manual 3/2-way valve for pressurising and exhausting pneumatic systems. A silencer can be attached or the exhaust air ducted at port 3. Switching position is immediately recognisable. Optionally with pressure gauge and pressure sensor. Standard nominal flow rate <=1.800 l/min with grid dimension 40 mm

FestoMFR # MS4N-EM1-AQPSKU # YLS4LMB9XGAZKX

SeriesMS

Size4

DesignRotary switching valve

Type of actuationManual

Exhaust-air functionCannot be throttled

Type of pilotingDirect

Have questions?Chat on WhatsApp

About This Product

Festo MS4N-EM1-AQP

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SeriesMS

Size4

DesignRotary switching valve

Type of actuationManual

Exhaust-air functionCannot be throttled

Type of pilotingDirect

Symbol00991670

Valve function3/2-way, double solenoid

Operating pressure0, 1.4

Operating pressure0, 14

C value9

b value0.39

Standard nominal flow rate (standardised to DIN 1343)2200

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Ambient temperature-10, 60

Suitable for use with foodSee supplementary material information

Type of mountingEither:, Inline installation, With accessories

Mounting positionAny

Flow directionNon-reversible

Product weight320

Pneumatic connection, port 13/8 NPT

Pneumatic connection, port 23/8 NPT

Pneumatic connection, port 31/4 NPT

Material sealsTPE-U(PU)

Material housingDie-cast aluminium

Accessories 19

Genuine accessories that can be used with the Festo MS4N-EM1-AQP motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS4-MV1	Module connector · Mounting accessories
MS4-WP-F1A	Mounting bracket · Mounting accessories
MS4-MV1-F1A	Module connector · Mounting accessories
MS4-MV-EX	Module connector · Mounting accessories
MS4-WP-EX	Mounting bracket · Mounting accessories
MS4-6-AMV	Module connector · Mounting accessories
MS4-RMV	Module connector · Mounting accessories
MS4-E-IPM-40-80	Power supply module · Mounting accessories
MS4-E-IPM-80-80	Power supply module · Mounting accessories
MS4-A-IPM-80	Branching module · Mounting accessories
MS4-A-RMV-IPM-80	Branching module · Mounting accessories
MS4-6-AMV-EX	Module connector · Mounting accessories
MS4-RMV-EX	Module connector · Mounting accessories
MS4-WPM-D	Mounting bracket · Mounting accessories
MS4-WBM	Mounting bracket · Mounting accessories
MS4-WPM-2D	Mounting bracket · Mounting accessories
MS4-WP	Mounting bracket · Mounting accessories
MS4-WB	Mounting bracket · Mounting accessories
MS4-MVM	Module connector · Mounting accessories
