How can I get a price quote for Festo MS4-EM1FR-1/4-D6-E-P-VC-A8-WPE-B?

You can request a fast quote for Festo MS4-EM1FR-1/4-D6-E-P-VC-A8-WPE-B from Yılsa Engineering. Reference part number YLSUK5RGPHA5IQ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MS4-EM1FR-1/4-D6-E-P-VC-A8-WPE-B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MS4-EM1FR-1/4-D6-E-P-VC-A8-WPE-B genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MS4-EM1FR-1/4-D6-E-P-VC-A8-WPE-B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

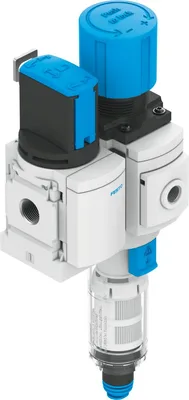

Festo MS4-EM1FR-1/4-D6-E-P-VC-A8-WPE-B

Service unit. Grid dimension 40, 62 mm. Combination of on/off valve and filter regulator. With manual or fully automatic condensate drain. For filtered and unlubricated compressed air supply. Supply pressure can be switched on or off. Output pressure is continuously adjustable within the pressure regulation range

FestoMFR # MS4-EM1FR-1/4-D6-E-P-VC-A8-WPE-BSKU # YLSUK5RGPHA5IQ

Size4

SeriesMS

Mounting positionVertical +/-5°

Operating pressure0.1, 1

Operating pressure1, 10

Operating pressure14.5, 145

Have questions?Chat on WhatsApp

About This Product

Festo MS4-EM1FR-1/4-D6-E-P-VC-A8-WPE-B

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size4

SeriesMS

Mounting positionVertical +/-5°

Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/8

Operating pressure0.1, 1

Operating pressure1, 10

Operating pressure14.5, 145

Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)1400

Standard nominal flow rate (standardised to DIN 1343)1700

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumCompatibility with ester oil not guaranteed

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-5, 50

Media temperature5, 50

Ambient temperature5, 50

Product weight470

Type of mountingWith mounting bracket, With accessories

Note on materialsRoHS compliant

Accessories 18

Genuine accessories that can be used with the Festo MS4-EM1FR-1/4-D6-E-P-VC-A8-WPE-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
U-1/4	Silencer · Silencer
PUN-H-12X2-NT	Plastic tubing · Tubes
PUN-H-12X2-BL	Plastic tubing · Tubes
QS-G1/4-12	Push-in fitting · Fittings
LRVS-D	Padlock · General accessories
PUN-H-12X2-SW	Plastic tubing · Tubes
QSL-G1/4-12	Push-in L-fitting · Fittings
PUN-H-12X2-TBL	Plastic tubing · Tubes
PAGN-26-10-G18S	Pressure gauge · General accessories
PAGN-26-1M-G18S	Pressure gauge · General accessories
MS4-MV1	Module connector · Mounting accessories
UC-1/4	Silencer · Silencer
UC-1/4-20	Silencer · Silencer
U-1/4-20	Silencer · Silencer
AMTE-M-LH-G14	Silencer · Silencer
AMTE-M-H-G14	Silencer · Silencer
MS4-WPE-B	Wall mounting kit · Mounting accessories
MS4-MV1-F1A	Module connector · Mounting accessories
