How can I get a price quote for Festo MS2-LR-M5-D6-AR-MPA-F1A-B?

You can request a fast quote for Festo MS2-LR-M5-D6-AR-MPA-F1A-B from Yılsa Engineering. Reference part number YLSUAYHMW3HJEGF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MS2-LR-M5-D6-AR-MPA-F1A-B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MS2-LR-M5-D6-AR-MPA-F1A-B genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MS2-LR-M5-D6-AR-MPA-F1A-B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

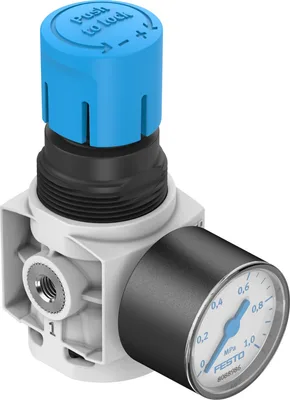

Festo MS2-LR-M5-D6-AR-MPA-F1A-B

Pressure regulator. Grid dimension 25, 40, 62 mm. Competitively priced basic component focused on the most important technical functions. Lightweight and sturdy thanks to modern polymer materials. Compatible with the MS series for the ideal combination of low-cost basic functionality and high-end functional requirements. Stabile control response. With or without pressure gauge. Rotary knob with latch. With integrated secondary exhausting and primary exhausting with return flow function. MS2: Directly operated diaphragm regulator. MS4, MS6: directly actuated piston regulator. Sustainable operation thanks to reduced pressure level

FestoMFR # MS2-LR-M5-D6-AR-MPA-F1A-BSKU # YLSUAYHMW3HJEGF

Size2

SeriesMS

Actuator lockRotary knob with detent

Mounting positionAny

DesignDirectly actuated diaphragm regulator

Symbol00991558

Have questions?Chat on WhatsApp

About This Product

Festo MS2-LR-M5-D6-AR-MPA-F1A-B

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size2

SeriesMS

Actuator lockRotary knob with detent

Mounting positionAny

DesignDirectly actuated diaphragm regulator

Controller functionOutput pressure constant, With secondary exhausting, With return flow function

Symbol00991558

Displayable unitsMPa

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

Operating pressure0.1, 1

Operating pressure1, 10

Pressure regulation range0.5, 7

Max. pressure hysteresis0.025

Max. pressure hysteresis0.25

Max. pressure hysteresis3.625

Standard nominal flow rate (standardised to DIN 1343)170

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Storage temperature-5, 50

Media temperature-5, 50

Ambient temperature-5, 50

Product weight38.6

Type of mountingWith accessories

Pneumatic connection, port 1M5

Pneumatic connection, port 2M5

Note on materialsRoHS compliant

Material underneath coverProcess automation

Material sealsNBR

Material rotary knobPOM

Material springHigh-alloy steel

Material housingReinforced PA

Material membraneNBR

Material valve stemWrought aluminium alloy, NBR

Accessories 11

Genuine accessories that can be used with the Festo MS2-LR-M5-D6-AR-MPA-F1A-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS2-G18S	Plug screw · Mounting accessories
MS2-WR-F1A-B	Mounting bracket · Mounting accessories
PUN-H-6X1-TBL	Plastic tubing · Tubes
PUN-H-6X1-NT	Plastic tubing · Tubes
NPQE-DK-M5-Q6-F1A-P10	Push-in fitting · Fittings
PUN-H-6X1-BL	Plastic tubing · Tubes
NPQE-L-M5-Q6-F1A-P10	Push-in fitting · Fittings
PUN-H-6X1-SW	Plastic tubing · Tubes
MS2-WRS	Nut · Mounting accessories
NPQE-DK-M5-Q4-F1A-P10	Push-in fitting · Push-in fittings
NPQE-L-M5-Q4-F1A-P10	Push-in fitting · Push-in fittings
