How can I get a price quote for Festo MS2-LF-QS6-C-P-M-F1A-B?

You can request a fast quote for Festo MS2-LF-QS6-C-P-M-F1A-B from Yılsa Engineering. Reference part number YLSKQTZ8GY6CKP6. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MS2-LF-QS6-C-P-M-F1A-B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MS2-LF-QS6-C-P-M-F1A-B genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MS2-LF-QS6-C-P-M-F1A-B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

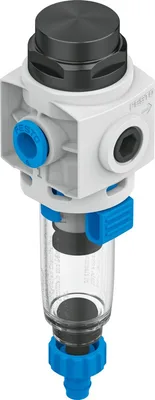

Festo MS2-LF-QS6-C-P-M-F1A-B

Filter. Very compact and extremely lightweight series for use close to the process directly in the machine. Lightweight and sturdy thanks to modern polymer materials. Compatible with the MS series for the ideal combination of low-cost basic functionality and high-end functional requirements. With manual condensate drain, rotating. Grid dimension 25 mm. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable operation thanks to reduced pressure level. Sustainable in production thanks to the use of alternative materials

FestoMFR # MS2-LF-QS6-C-P-M-F1A-BSKU # YLSKQTZ8GY6CKP6

Size2

SeriesMS

Mounting positionVertical +/-5°

Grade of filtration5

Condensate drainManual, rotating

Symbol00991519

Have questions?Chat on WhatsApp

About This Product

Festo MS2-LF-QS6-C-P-M-F1A-B

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size2

SeriesMS

Mounting positionVertical +/-5°

Grade of filtration5

Condensate drainManual, rotating

DesignSintered filter with centrifugal separator

Symbol00991519

Operating pressure0.1, 1

Operating pressure1, 10

Operating pressure14.5, 145

Standard nominal flow rate (standardised to DIN 1343)250

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Storage temperature-5, 50

Air purity class at outputCompressed air to ISO 8573-1:2010 [6:4:4]

Media temperature-5, 50

Ambient temperature-5, 50

Product weight42.1

Type of mountingWith accessories

Pneumatic connection, port 1QS-6

Pneumatic connection, port 2QS-6

Note on materialsRoHS compliant

Material sealsNBR

Material springHigh-alloy steel

Material filterPackaging unit

Material housingReinforced PA

Material membraneNBR

Material bowlMakrolon®

Accessories 4

Genuine accessories that can be used with the Festo MS2-LF-QS6-C-P-M-F1A-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS2/LFP-D-MICRO-5M	Filter cartridge · General accessories
MS2-G18S	Plug screw · Mounting accessories
MS2-WRS	Nut · Mounting accessories
MS2-WR-F1A-B	Mounting bracket · Mounting accessories
