How can I get a price quote for FESTO MS12-LR-G-D7-LD-AS?

You can request a fast quote for FESTO MS12-LR-G-D7-LD-AS from Yılsa Engineering. Reference part number CEY-937FC7820020. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MS12-LR-G-D7-LD-AS in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MS12-LR-G-D7-LD-AS genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MS12-LR-G-D7-LD-AS?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

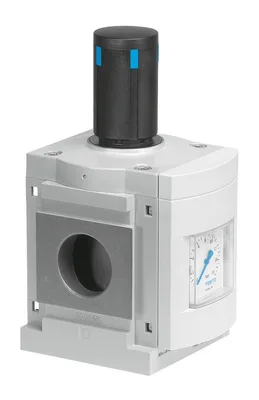

FESTO MS12-LR-G-D7-LD-AS

Pressure regulator. High flow rate performance with minimal pressure drop. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. With secondary exhausting. Lockable rotary knob. With or without pressure gauge. MS12-LR-...-PO: pneumatically actuated (pressure range determined by pilot regulator). MS12-LR-...-PE6: electrically actuated (pilot control by proportional pressure regulator). Sustainable operation thanks to reduced pressure level. Standard nominal flow rate <=22.000 l/min with grid dimension 124 mm

FESTOMFR # MS12-LR-G-D7-LD-ASSKU # CEY-937FC7820020

Size12

SeriesMS

Mounting positionAny

DesignPiloted diaphragm regulator

Symbol00991558

Operating pressure0.08, 2.1

Have questions?Chat on WhatsApp

About This Product

FESTO MS12-LR-G-D7-LD-AS

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size12

SeriesMS

Actuator lockRotary knob with detent, can be closed with accessories

Mounting positionAny

DesignPiloted diaphragm regulator

Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function

Symbol00991558

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

Operating pressure0.08, 2.1

Operating pressure0.8, 21

Pressure regulation range0.5, 12

Max. pressure hysteresis0.04

Max. pressure hysteresis0.4

Max. pressure hysteresis5.8

Flow rate of secondary exhaust600

Standard nominal flow rate (standardised to DIN 1343)13000, 22000

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Media temperature-10, 60

Ambient temperature-10, 60

Product weight4000

Type of mountingWith mounting bracket

Pneumatic connection, port 1Sub-base

Pneumatic connection, port 2Sub-base

Material coveringPA

Note on materialsRoHS compliant

Material control panelReinforced PA, POM

Material underneath coverWrought aluminium alloy

Material sealsNBR

Material springSpring steel

Material housingDie-cast aluminium

Material membraneNBR

Material valve stemWrought aluminium alloy, NBR, High-alloy stainless steel

Accessories 8

Genuine accessories that can be used with the FESTO MS12-LR-G-D7-LD-AS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
LRVS-D	Padlock · General accessories
MS12-WP	Mounting bracket · Mounting accessories
MS12-MV	Module connector · Mounting accessories
MS12-AGF	Sub-base-SET · Mounting accessories
MS12-AGG	Sub-base-SET · Mounting accessories
MS12-AGH	Sub-base-SET · Mounting accessories
MS12-AGI	Sub-base-SET · Mounting accessories
MS12-RB-10	Covering kit · Mounting accessories
