How can I get a price quote for FESTO MS12-LFR-G-D7-CUV-LD-AS?

You can request a fast quote for FESTO MS12-LFR-G-D7-CUV-LD-AS from Yılsa Engineering. Reference part number CEY-937FC782001E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MS12-LFR-G-D7-CUV-LD-AS in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MS12-LFR-G-D7-CUV-LD-AS genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MS12-LFR-G-D7-CUV-LD-AS?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

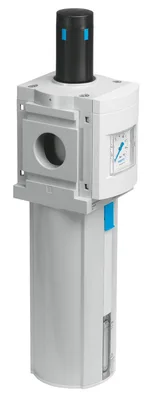

FESTO MS12-LFR-G-D7-CUV-LD-AS

Filter regulator. MS12-LFR: piloted diaphragm regulator without internal air consumption. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. Good particle and condensate separation. With or without secondary exhausting. High flow rate. Lockable rotary knob. Return flow option for exhausting from output 2 to input 1 already integrated. Standard nominal flow rate <=22.000 l/min with grid dimension 124 mm

FESTOMFR # MS12-LFR-G-D7-CUV-LD-ASSKU # CEY-937FC782001E

Size12

SeriesMS

Mounting positionVertical +/-5°

Grade of filtration5

Condensate drainManual, non-detenting

Max. condensate volume400

Have questions?Chat on WhatsApp

About This Product

FESTO MS12-LFR-G-D7-CUV-LD-AS

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size12

SeriesMS

Actuator lockRotary knob with detent, can be closed with accessories

Mounting positionVertical +/-5°

Grade of filtration5

Condensate drainManual, non-detenting

DesignSintered filter with centrifugal separator, With condensate drain, With secondary exhausting, Modular, Piloted diaphragm regulator

Max. condensate volume400

Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting, With return flow function

Bowl guardIntegrated as metal bowl

Degree of condensate separation75

Symbol00991587

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

Operating pressure2, 12

Pressure regulation range0.5, 12

Max. pressure hysteresis0.4

Flow rate of secondary exhaust500

Standard nominal flow rate (standardised to DIN 1343)11000, 14000

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:-], Inert gas

Note on operating and pilot mediumEster oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Air purity class at outputCompressed air to ISO 8573-1:2010 [6:4:4]

Media temperature5, 60

Ambient temperature5, 60

Pore size5

Product weight7000

Type of mountingWith mounting bracket

Pneumatic connection, port 1Internal

Pneumatic connection, port 2Internal

Material coveringProcess automation

Material spin discPOM

Material filter carrierPOM

Material sight glass metal bowlMakrolon®

Material control panelReinforced PA, POM

Material sealsNBR

Material springSpring steel

Material filterSintered bronze

Material housingDie-cast aluminium

Material membraneNBR

Material bowlWrought aluminium alloy

Material separating platePOM

Material valve stemWrought aluminium alloy, NBR, High-alloy stainless steel

Material stabilization discPOM

Accessories 9

Genuine accessories that can be used with the FESTO MS12-LFR-G-D7-CUV-LD-AS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
LRVS-D	Padlock · General accessories
MS12-WP	Mounting bracket · Mounting accessories
MS12-MV	Module connector · Mounting accessories
MS12-AGF	Sub-base-SET · Mounting accessories
MS12-AGG	Sub-base-SET · Mounting accessories
MS12-AGH	Sub-base-SET · Mounting accessories
MS12-AGI	Sub-base-SET · Mounting accessories
MS12-LFP-C	Filter cartridge · General accessories
MS12-RB-10	Covering kit · Mounting accessories
