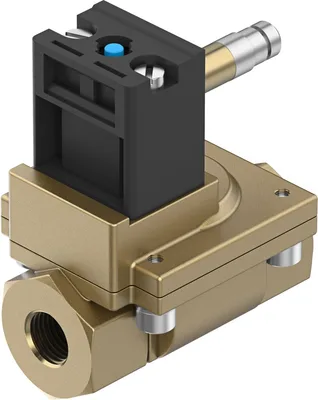

FESTO MN1H-2-1 1/2-MS

Solenoid valve. Piloted diaphragm valve. Brass design. Can only be used for gaseous media. Adjustable closing cushioning, in-line mounting or through-hole. Operating voltage 24 V DC, 110/230 V AC (50 ... 60 Hz)

FESTOMFR # MN1H-2-1 1/2-MSSKU # CEY-937FC78228B4

DesignDiaphragm valve

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveG1 1/2

Have questions?Chat on WhatsApp

About This Product

FESTO MN1H-2-1 1/2-MS

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignDiaphragm valve

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveG1 1/2

Electrical connectionPlug, To DIN EN 175301-803, Square design

Nominal size40

Valve function2/2-way, single solenoid, closed

Manual overrideDetenting via accessory, Non-detenting

Flow directionNon-reversible

MediumFiltered compressed air, grade of filtration 200 µm

Exhaust-air functionCannot be throttled

Characteristic coil data230 V AC: 50 Hz, pick-up power 5.0 VA, holding power 3.7 VA, 230 V AC: 60 Hz, pick-up power 5.0 VA, holding power 3.7 VA, 24 V DC: 2.5 W

Type of resetPneumatic spring

Type of pilotingPiloted

Symbol00991399

Medium pressure0.5, 10

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Media temperature-10, 60

Ambient temperature-10, 60

Standard nominal flow rate (standardised to DIN 1343)30500

Switching time on230, 440

Switching time off300, 1000

LABS (PWIS) conformityVDMA24364-B1/B2-L

Material housingBrass

Material screwsHigh-alloy stainless steel

Material number screw1,4301

Product weight2600

Degree of protectionIP65, With plug socket

Accessories 10

Genuine accessories that can be used with the FESTO MN1H-2-1 1/2-MS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KMC-1-24DC-2,5-LED	Connecting cable · Connecting cables
KMC-1-230AC-2,5	Connecting cable · Connecting cables
KMC-1-24DC-5-LED	Connecting cable · Connecting cables
KMC-1-230AC-5	Connecting cable · Connecting cables
MSN1G-24DC-OD	Solenoid coil · Electrical accessories
MSN1W-110AC-OD	Solenoid coil · Electrical accessories
MSN1W-230AC-OD	Solenoid coil · Electrical accessories
AHB-MD/MF/MV	Manual override · General accessories
MSN1W-24AC/12DC	Solenoid coil · Electrical accessories
KMC-1-24-10-LED	Connecting cable · Connecting cables
