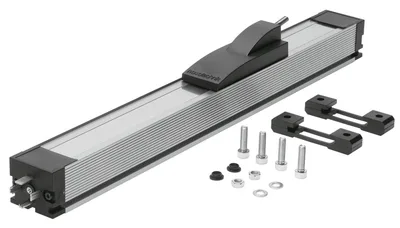

Festo MLO-POT-225-TLF

Displacement encoder. Conductive plastic potentiometer. Absolute measurement with high resolution. High travel speed and long service life. Plug-in connections

FestoMFR # MLO-POT-225-TLFSKU # CEY-937FC7825C5E

CE mark (see declaration of conformity)To EU EMC Directive

Functional principle of measuring systemAnalogue

Ambient temperature-30, 100

Recommended wiper current1

Max. wiper current, short-time10000

Max. travel speed10

Have questions?Chat on WhatsApp

About This Product

Displacement encoder. Conductive plastic potentiometer. Absolute measurement with high resolution. High travel speed and long service life. Plug-in connections

Festo MLO-POT-225-TLF

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

CE mark (see declaration of conformity)To EU EMC Directive

Functional principle of measuring systemAnalogue

Ambient temperature-30, 100

Recommended wiper current1

Max. wiper current, short-time10000

Max. travel speed10

Max. travel acceleration200

Displacement resolution0.01

Non-dependent linearity0.07 %

Temperature coefficient5

Stroke225

Output signalAnalogue

Connection resistance5

Connection resistance tolerance20

Nominal operating voltage DC10

Max. operating voltage DC42

Permissible voltage fluctuations<1%

Max. current consumption4

Electrical connectionPlug, To DIN 43650, Square design

DesignWith cover strip, With sliding carriage, Open profile

Parallel offset of coupling± 1.5 mm

Angle offset of driver±1°

Mounting positionAny

Product weight900

Material housinganodised

Material coveringSteel

Material slide housingDie-cast aluminium, Polymer

Material slide couplingSteel

Material coverPolymer

Material mounting clipsPEI

Degree of protection at topTo IEC 60529

Degree of protection at bottomTo IEC 60529

Vibration resistance to DIN/IEC 68 Part 2-6Tested to severity level 2

Continuous shock resistance to DIN/IEC 68 Part 2-82Tested to severity level 2

LABS (PWIS) conformityVDMA24364-B2-L
