How can I get a price quote for Festo MHP1-P2-2?

You can request a fast quote for Festo MHP1-P2-2 from Yılsa Engineering. Reference part number CEY-937FC7821443. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MHP1-P2-2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MHP1-P2-2 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MHP1-P2-2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

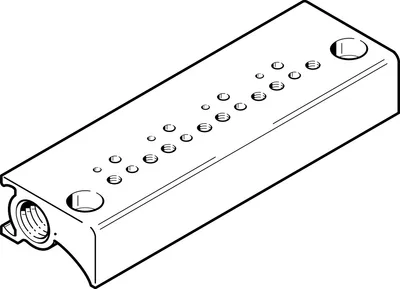

Festo MHP1-P2-2

Manifold block

FestoMFR # MHP1-P2-2SKU # CEY-937FC7821443

Max. number of valve positions2

Operating pressure0, 8

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-10, 60

Mounting method for sub-baseWith through-hole

Have questions?Chat on WhatsApp

About This Product

Festo MHP1-P2-2 (Manifold block) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo MHP1-P2-2 — price, stock availability and technical specifications.

Festo MHP1-P2-2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Max. number of valve positions2

Operating pressure0, 8

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-10, 60

Mounting method for sub-baseWith through-hole

Mounting method for valveWith female thread

Pneumatic connection, port 1M7

Material sub-baseWrought aluminium alloy

Accessories 22

Genuine accessories that can be used with the Festo MHP1-P2-2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSML-M7-4-100	Push-in L-fitting · Push-in fittings
QSML-M7-6-100	Push-in L-fitting · Push-in fittings
QSMLV-M7-4-I	Push-in L-fitting · Push-in fittings
QSMLV-M7-6-I	Push-in L-fitting · Push-in fittings
QSMLLV-M7-4-I	Push-in L-fitting, long · Push-in fittings
QSMLLV-M7-6-I	Push-in L-fitting, long · Push-in fittings
QSM-M7-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M7-4-I-100	Push-in fitting · Push-in fittings
QSM-M7-6-I-R	Push-in fitting · Push-in fittings
QSMLL-M7-4-100	Push-in L-fitting, long · Push-in fittings
QSM-M7-4-I	Push-in fitting · Push-in fittings
QSM-M7-6-I	Push-in fitting · Push-in fittings
QSM-M7-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M7-3/16-I-U-M	Push-in fitting · Push-in fittings
QSM-M7-1/4-I-U-M	Push-in fitting · Push-in fittings
QSML-M7-4	Push-in L-fitting · Push-in fittings
QSML-M7-6	Push-in L-fitting · Push-in fittings
QSMLL-M7-4	Push-in L-fitting, long · Push-in fittings
QSMLL-M7-6	Push-in L-fitting, long · Push-in fittings
MHAP1-BP-3	Cover plate · Connection accessories
PCBC-A-10	Soldering base · Connection accessories
PCBC-A-100	Soldering base · Connection accessories
