How can I get a price quote for FESTO MD-2-110VAC-PA?

You can request a fast quote for FESTO MD-2-110VAC-PA from Yılsa Engineering. Reference part number CEY-937FC781E231. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MD-2-110VAC-PA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MD-2-110VAC-PA genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MD-2-110VAC-PA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

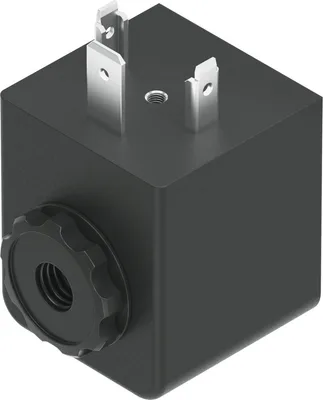

FESTO MD-2-110VAC-PA

Solenoid coil

FESTOMFR # MD-2-110VAC-PASKU # CEY-937FC781E231

Type of actuationElectrical

Mounting positionAny

Duty cycle100%

Power factor (cos phi)0.7

Permissible frequency fluctuations+/-10%

Permissible voltage fluctuations+/-10%

Have questions?Chat on WhatsApp

About This Product

FESTO MD-2-110VAC-PA (Solenoid coil) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO MD-2-110VAC-PA — price, stock availability and technical specifications.

FESTO MD-2-110VAC-PA

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Type of actuationElectrical

Mounting positionAny

Duty cycle100%

Power factor (cos phi)0.7

Characteristic coil data110 V AC: 50/60 Hz, pick-up power 14.5 VA, holding power 10.5 VA

Permissible frequency fluctuations+/-10%

Permissible voltage fluctuations+/-10%

CE mark (see declaration of conformity)To EU Low Voltage Directive

UKCA marking (see declaration of conformity)To UK regulations for electrical equipment

LABS (PWIS) conformityVDMA24364-B2-L

Degree of protectionIP65

Ambient temperature-20, 50

Max. tightening torque for fitting0.5

Product weight110

Electrical connectionTo DIN EN 175301-803

Type of mountingVia knurled nut

Note on materialsRoHS compliant

Material solenoid coilDuroplast, Copper, Steel

Material windingCopper

Accessories 1

Genuine accessories that can be used with the FESTO MD-2-110VAC-PA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
