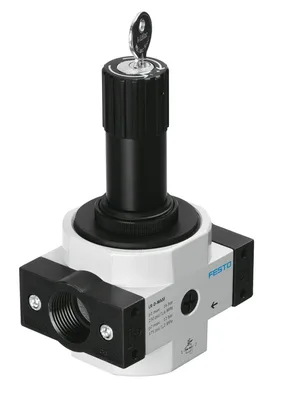

FESTO LRS-1-D-O-MAXI

Pressure regulator. Lockable design. Two pressure gauge connections for different installation options. Micro, mini, midi size: directly actuated diaphragm regulator. Maxi size: piloted piston regulator, diaphragm regulator LRS-DI. Optional return flow option for exhausting from output 2 to input 1. Available with pressure gauge. Size micro, mini, midi, maxi

FESTOMFR # LRS-1-D-O-MAXISKU # CEY-937FC7821CB2

SizeMaxi

SeriesD

Actuator lockRotary knob with integrated lock

Mounting positionAny

DesignPiloted piston regulator

Symbol00991559

Have questions?Chat on WhatsApp

About This Product

FESTO LRS-1-D-O-MAXI

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeMaxi

SeriesD

Actuator lockRotary knob with integrated lock

Mounting positionAny

DesignPiloted piston regulator

Controller functionOutput pressure constant, With secondary exhausting

Symbol00991559

Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/4

Operating pressure0, 1.6

Operating pressure0, 16

Pressure regulation range0.5, 12

Max. pressure hysteresis0.04

Max. pressure hysteresis0.4

Max. pressure hysteresis5.8

Standard nominal flow rate (standardised to DIN 1343)11500

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Media temperature-10, 60

Ambient temperature-10, 60

Product weight815

Type of mountingWith accessories

Pneumatic connection, port 1G1

Pneumatic connection, port 2G1

Note on materialsRoHS compliant

Material sub-baseDie-cast zinc

Material sealsNBR

Material housingDie-cast zinc

Accessories 8

Genuine accessories that can be used with the FESTO LRS-1-D-O-MAXI motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
HFOE-D-MIDI/MAXI	Mounting bracket · Mounting accessories
FRB-D-MAXI	Threaded bolt · Mounting accessories
HR-D-MAXI	Mounting bracket · Mounting accessories
MA-50-16-1/4	Pressure gauge · General accessories
NPFC-T-2G1-R1-FMF	T-fitting · Other connectors
NPFC-D-2R1-M	Double nipple · Other connectors
NPFC-RS-G1-G12-MF	Reducing nipple · Other connectors
NPFC-RS-G1-G34-MF	Reducing nipple · Other connectors
