How can I get a price quote for Festo LR-D-7-MINI?

You can request a fast quote for Festo LR-D-7-MINI from Yılsa Engineering. Reference part number YLSJG6TK1BPNNS4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo LR-D-7-MINI in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo LR-D-7-MINI genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo LR-D-7-MINI?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

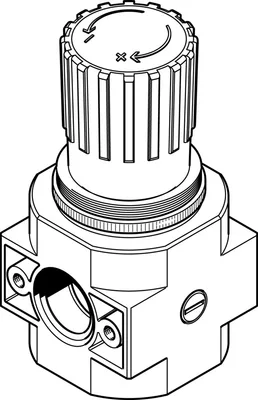

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo LR-D-7-MINI

Basic valve. Lockable design. Two pressure gauge connections for different installation options. Micro, mini, midi size: directly actuated diaphragm regulator. Maxi size: piloted piston regulator, diaphragm regulator LRS-DI. Optional return flow option for exhausting from output 2 to input 1. Available with pressure gauge. Size micro, mini, midi, maxi

FestoMFR # LR-D-7-MINISKU # YLSJG6TK1BPNNS4

SizeMini

SeriesD

Actuator lockRotary knob with detent

Mounting positionAny

DesignDirectly actuated diaphragm regulator

Symbol00991538

Have questions?Chat on WhatsApp

About This Product

Festo LR-D-7-MINI

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeMini

SeriesD

Actuator lockRotary knob with detent

Mounting positionAny

DesignDirectly actuated diaphragm regulator

Controller functionOutput pressure constant, With primary pressure compensation, With secondary exhausting

Symbol00991538

Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/8

Operating pressure0.1, 1.6

Operating pressure1, 16

Pressure regulation range0.5, 7

Max. pressure hysteresis0.02

Max. pressure hysteresis0.2

Max. pressure hysteresis2.9

Standard nominal flow rate (standardised to DIN 1343)4449.15

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Media temperature-10, 60

Ambient temperature-10, 60

Product weight347.288

Type of mountingWith accessories

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast zinc

Accessories 23

Genuine accessories that can be used with the Festo LR-D-7-MINI motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PBL-1/8-D-MINI-R-NPT	Sub-base · Mounting accessories
LRVS-D-MINI	Regulator lock · Mounting accessories
HMR-D-MINI/MAXI	Hex nut · Mounting accessories
PBL-1/4-D-MINI-L-NPT	Sub-base · Mounting accessories
PBL-1/4-D-MINI-R-NPT	Sub-base · Mounting accessories
FRB-D-MINI-U	Threaded bolt · Mounting accessories
PBL-1/8-D-MINI-L	Sub-base · Mounting accessories
PBL-3/8-D-MINI-L-NPT	Sub-base · Mounting accessories
PBL-1/8-D-MINI-R	Sub-base · Mounting accessories
PBL-3/8-D-MINI-R-NPT	Sub-base · Mounting accessories
PBL-1/4-D-MINI-L	Sub-base · Mounting accessories
PBL-1/4-D-MINI-R	Sub-base · Mounting accessories
PBL-3/8-D-MINI-L	Sub-base · Mounting accessories
PBL-3/8-D-MINI-R	Sub-base · Mounting accessories
HFOE-D-MINI	Mounting bracket · Mounting accessories
PBL-1/8-D-MINI-L-NPT	Sub-base · Mounting accessories
FRB-D-MINI	Threaded bolt · Mounting accessories
MA-40-10-1/8-EN	Pressure gauge · General accessories
MA-40-10-1/8	Pressure gauge · General accessories
MA-40-10-R1/8-E-RG	Pressure gauge · General accessories
MA-40-1,0-R1/8-MPA-E-RG	Pressure gauge · General accessories
MA-40-145-R1/8-PSI-E-RG	Pressure gauge · General accessories
LR/LFR-D-MINI/MAXI-SW	Actuator head · Mounting accessories
