How can I get a price quote for Festo LR-3/8-D-MINI-NPT?

You can request a fast quote for Festo LR-3/8-D-MINI-NPT from Yılsa Engineering. Reference part number YLSVECKDBLYO1PV. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo LR-3/8-D-MINI-NPT in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo LR-3/8-D-MINI-NPT genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo LR-3/8-D-MINI-NPT?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

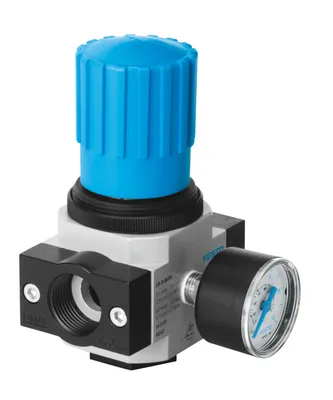

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo LR-3/8-D-MINI-NPT

Pressure regulator. Lockable design. Two pressure gauge connections for different installation options. Micro, mini, midi size: directly actuated diaphragm regulator. Maxi size: piloted piston regulator, diaphragm regulator LRS-DI. Optional return flow option for exhausting from output 2 to input 1. Available with pressure gauge. Size micro, mini, midi, maxi

FestoMFR # LR-3/8-D-MINI-NPTSKU # YLSVECKDBLYO1PV

SizeMini

SeriesD

Symbol00991538

Operating pressure0.1, 1.6

Operating pressure1, 16

Pressure regulation range0.5, 12

Have questions?Chat on WhatsApp

About This Product

Festo LR-3/8-D-MINI-NPT

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeMini

SeriesD

Symbol00991538

Operating pressure0.1, 1.6

Operating pressure1, 16

Pressure regulation range0.5, 12

Max. pressure hysteresis0.02

Max. pressure hysteresis0.2

Max. pressure hysteresis2.9

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Pneumatic connection, port 13/8 NPT

Pneumatic connection, port 23/8 NPT

Note on materialsRoHS compliant

Accessories 28

Genuine accessories that can be used with the Festo LR-3/8-D-MINI-NPT motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
LRVS-D-MINI	Regulator lock · Mounting accessories
HMR-D-MINI/MAXI	Hex nut · Mounting accessories
FRB-D-MINI-U	Threaded bolt · Mounting accessories
HFOE-D-MINI	Mounting bracket · Mounting accessories
HR-D-MINI	Mounting bracket · Mounting accessories
PUN-H-1/2-BL-150-CB	Plastic tubing · Tubes
PUN-H-1/2-SW-150-CB	Plastic tubing · Tubes
PUN-H-1/2-NT-150-CB	Plastic tubing · Tubes
QB-3/8-1/2-U	Push-in fitting · Fittings
QBL-3/8-1/2-U	Push-in L-fitting · Fittings
QSYLV-3/8-3/8-U	Push-in T-fitting · Push-in fittings
QSR-3/8-3/8-U	Push-in fitting, rotatable · Push-in fittings
QSRL-3/8-3/8-U	Push-in L-fitting · Push-in fittings
QSRL-3/8-1/2-U	Push-in L-fitting · Push-in fittings
QSK-3/8-3/8-U	Push-in fitting, self-sealing · Push-in fittings
QSK-3/8-1/2-U	Push-in fitting, self-sealing · Push-in fittings
QSLV-3/8-3/8-I-U	Push-in L-fitting · Push-in fittings
QSLV-3/8-1/2-I-U	Push-in L-fitting · Push-in fittings
QSLV2-3/8-3/8-U	Multiple distributor · Push-in fittings
QSLV2-3/8-1/2-U	Multiple distributor · Push-in fittings
QSLV3-3/8-3/8-U	Multiple distributor · Push-in fittings
QSLV3-3/8-1/2-U	Multiple distributor · Push-in fittings
QSLV4-3/8-3/8-U	Multiple distributor · Push-in fittings
QSLV4-3/8-1/2-U	Multiple distributor · Push-in fittings
QSLV6-3/8-3/8-U	Multiple distributor · Push-in fittings
QSLV6-3/8-1/2-U	Multiple distributor · Push-in fittings
QSTF-3/8-3/8-U	Push-in T-fitting · Push-in fittings
LR/LFR-D-MINI/MAXI-SW	Actuator head · Mounting accessories
