How can I get a price quote for Festo LOE-3/4-D-MAXI-NPT?

You can request a fast quote for Festo LOE-3/4-D-MAXI-NPT from Yılsa Engineering. Reference part number YLS8ALNWGOXOO3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo LOE-3/4-D-MAXI-NPT in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo LOE-3/4-D-MAXI-NPT genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo LOE-3/4-D-MAXI-NPT?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

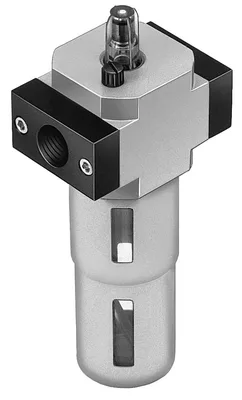

Festo LOE-3/4-D-MAXI-NPT

Lubricator. Proportional lubricator with precision oil metering. Quick and easy top-up even under pressure. Oil capacity 6.5 ... 190 cm³. Size micro, mini, midi, maxi

FestoMFR # LOE-3/4-D-MAXI-NPTSKU # YLS8ALNWGOXOO3

Max. oil capacity190

Bowl guardMetal bowl guard

Symbol00991532

Operating pressure1.6

Operating pressure16

Operating pressure232

Have questions?Chat on WhatsApp

About This Product

Lubricator. Proportional lubricator with precision oil metering. Quick and easy top-up even under pressure. Oil capacity 6.5 ... 190 cm³. Size micro, mini, midi, maxi

Festo LOE-3/4-D-MAXI-NPT

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Max. oil capacity190

Bowl guardMetal bowl guard

Symbol00991532

Operating pressure1.6

Operating pressure16

Operating pressure232

Min. flow rate for lubricator function10

Standard nominal flow rate (standardised to DIN 1343)8400

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:-], Inert gas

Media temperature-10, 60

Ambient temperature-10, 60

Product weight1100

Type of mountingWith accessories

Pneumatic connection, port 13/4 NPT

Pneumatic connection, port 23/4 NPT

Note on materialsRoHS compliant

Material bowlMakrolon®

Accessories 3

Genuine accessories that can be used with the Festo LOE-3/4-D-MAXI-NPT motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
