How can I get a price quote for FESTO LFU-3/8?

You can request a fast quote for FESTO LFU-3/8 from Yılsa Engineering. Reference part number CEY-937FC781F507. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO LFU-3/8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO LFU-3/8 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO LFU-3/8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

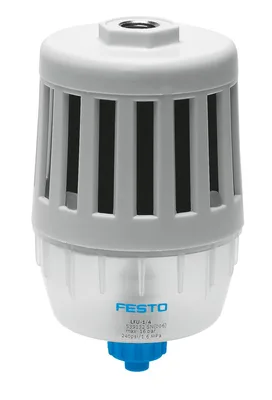

FESTO LFU-3/8

Filter silencer. Removes up to 99.99% of oil and other contaminants from the exhaust air. Manual rotary condensate drain. Exhaust noise reduced regardless of frequency

FESTOMFR # LFU-3/8SKU # CEY-937FC781F507

SizeG3/8

Mounting positionVertical +/-5°

Grade of filtration1

Condensate drainManual, rotating

Symbol00991531

Operating pressure0, 1.6

Have questions?Chat on WhatsApp

About This Product

Filter silencer. Removes up to 99.99% of oil and other contaminants from the exhaust air. Manual rotary condensate drain. Exhaust noise reduced regardless of frequency

FESTO LFU-3/8

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeG3/8

Mounting positionVertical +/-5°

Grade of filtration1

Condensate drainManual, rotating

Symbol00991531

Operating pressure0, 1.6

Operating pressure0, 16

Operating pressure0, 232

Flow rate to atmosphere4700

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Noise reductionReduction by 40 dB

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Sound pressure level78

Ambient temperature-10, 60

Product weight190

Pneumatic connectionG3/8

Note on materialsRoHS compliant

Material housingBrass, nickel-plated, PP

Accessories 8

Genuine accessories that can be used with the FESTO LFU-3/8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-G3/8-12-I	Push-in fitting · Fittings
LFPU-1/4-3/8	Filter cartridge · General accessories
QSL-G3/8-12	Push-in L-fitting · Fittings
QS-G3/8-12	Push-in fitting · Fittings
CN-3/8-PK-6	Barbed fitting · Barbed fittings
TCN-3/8-PK-6	Barbed T-fitting · Barbed fittings
LCN-3/8-PK-6	Barbed elbow fitting · Barbed fittings
LCNH-3/8-PK-6	Barbed elbow fitting · Barbed fittings
