How can I get a price quote for Festo LFMB-D-MIDI-U?

You can request a fast quote for Festo LFMB-D-MIDI-U from Yılsa Engineering. Reference part number YLSY0WB7GZ7XRC3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo LFMB-D-MIDI-U in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo LFMB-D-MIDI-U genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo LFMB-D-MIDI-U?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

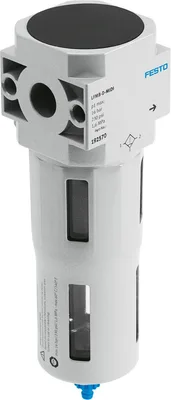

Festo LFMB-D-MIDI-U

Basic valve. High-efficiency filter for exceptionally clean compressed air. Removing oil aerosols from compressed air. Version with differential pressure indicator for visual indication of filter contamination. Size mini, midi, maxi

FestoMFR # LFMB-D-MIDI-USKU # YLSY0WB7GZ7XRC3

SeriesD

SizeMidi

DesignFibre filter

Grade of filtration1

Condensate drainManual, rotating

Symbol00991519

Have questions?Chat on WhatsApp

About This Product

Festo LFMB-D-MIDI-U

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SeriesD

SizeMidi

DesignFibre filter

Grade of filtration1

Condensate drainManual, rotating

Symbol00991519

Operating pressure0.1, 1.6

Operating pressure1, 16

Operating pressure14.5, 232

Operating mediumCompressed air to ISO 8573-1:2010 [6:4:4], Inert gas

Air purity class at outputCompressed air to ISO 8573-1:2010 [5:4:3], Inert gas

Filter efficiency99.99

Max. condensate volume42.983

Bowl guardMetal bowl guard

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature1, 60

Ambient temperature-10, 60

Storage temperature-10, 60

Filter efficiency, fine particles99

Residual oil content0.5

Filter efficiency, oil aerosol90

Type of mountingWith accessories

Mounting positionVertical +/-5°

Material housingDie-cast zinc

Material filterBorosilicate fibre

Material bowlMakrolon®

Note on materialsRoHS compliant

Product weight644.962

Accessories 20

Genuine accessories that can be used with the Festo LFMB-D-MIDI-U motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PBL-1/2-D-MIDI-R-NPT	Sub-base · Mounting accessories
HFOE-D-MIDI/MAXI	Mounting bracket · Mounting accessories
LFMBP-D-MIDI	Fine-filter cartridge · General accessories
PBL-3/4-D-MIDI-L-NPT	Sub-base · Mounting accessories
FRB-D-MIDI	Threaded bolt · Mounting accessories
PBL-3/4-D-MIDI-R-NPT	Sub-base · Mounting accessories
FRB-D-MIDI-U	Threaded bolt · Mounting accessories
PBL-3/8-D-MIDI-L-NPT	Sub-base · Mounting accessories
PBL-3/8-D-MIDI-L	Sub-base · Mounting accessories
PBL-3/8-D-MIDI-R	Sub-base · Mounting accessories
PBL-3/8-D-MIDI-R-NPT	Sub-base · Mounting accessories
PBL-1/2-D-MIDI-L	Sub-base · Mounting accessories
PBL-1/4-D-MIDI-L	Sub-base · Mounting accessories
PBL-1/2-D-MIDI-R	Sub-base · Mounting accessories
PBL-1/4-D-MIDI-R	Sub-base · Mounting accessories
PBL-1/4-D-MIDI-L-NPT:LI	Sub-base · Mounting accessories
PBL-3/4-D-MIDI-L	Sub-base · Mounting accessories
PBL-3/4-D-MIDI-R	Sub-base · Mounting accessories
PBL-1/4-D-MIDI-R-NPT:RE	Sub-base · Mounting accessories
PBL-1/2-D-MIDI-L-NPT	Sub-base · Mounting accessories
