How can I get a price quote for Festo LF-D-5M-MINI-U?

You can request a fast quote for Festo LF-D-5M-MINI-U from Yılsa Engineering. Reference part number YLSMHE0GIG14TTW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo LF-D-5M-MINI-U in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo LF-D-5M-MINI-U genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo LF-D-5M-MINI-U?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

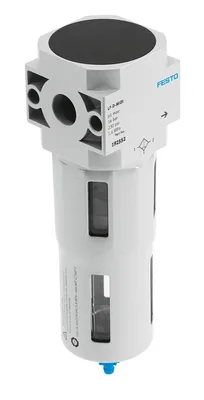

Festo LF-D-5M-MINI-U

Basic valve. Good particle and condensate separation. With manual or fully automatic condensate drain. Size micro, mini, midi, maxi. Plastic bowl with metal bowl guard

FestoMFR # LF-D-5M-MINI-USKU # YLSMHE0GIG14TTW

SizeMini

SeriesD

Mounting positionVertical +/-5°

Grade of filtration5

Condensate drainManual, rotating

Bowl guardMetal bowl guard

Have questions?Chat on WhatsApp

About This Product

Basic valve. Good particle and condensate separation. With manual or fully automatic condensate drain. Size micro, mini, midi, maxi. Plastic bowl with metal bowl guard

Festo LF-D-5M-MINI-U

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeMini

SeriesD

Mounting positionVertical +/-5°

Grade of filtration5

Condensate drainManual, rotating

DesignSintered filter with centrifugal separator

Bowl guardMetal bowl guard

Degree of condensate separation75

Symbol00991519

Operating pressure0, 1.6

Operating pressure0, 16

Operating pressure0, 232

Standard nominal flow rate (standardised to DIN 1343)3559.32

Operating mediumInert gas

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Air purity class at outputCompressed air to ISO 8573-1:2010 [6:8:4], Inert gas

Media temperature-10, 60

Ambient temperature-10, 60

Pore size5

Product weight248.062

Type of mountingWith accessories

Note on materialsRoHS compliant

Material filterPackaging unit

Material housingDie-cast zinc

Material bowlMakrolon®

Accessories 16

Genuine accessories that can be used with the Festo LF-D-5M-MINI-U motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
LFP-D-MINI-5M	Filter cartridge · General accessories
HFOE-D-MINI	Mounting bracket · Mounting accessories
PBL-1/8-D-MINI-R-NPT	Sub-base · Mounting accessories
PBL-1/4-D-MINI-L-NPT	Sub-base · Mounting accessories
FRB-D-MINI-U	Threaded bolt · Mounting accessories
PBL-1/4-D-MINI-R-NPT	Sub-base · Mounting accessories
LF/LOE-D-MINI	Bolt · Mounting accessories
PBL-1/8-D-MINI-L	Sub-base · Mounting accessories
PBL-3/8-D-MINI-L-NPT	Sub-base · Mounting accessories
PBL-1/8-D-MINI-R	Sub-base · Mounting accessories
PBL-3/8-D-MINI-R-NPT	Sub-base · Mounting accessories
PBL-1/4-D-MINI-L	Sub-base · Mounting accessories
PBL-1/4-D-MINI-R	Sub-base · Mounting accessories
PBL-3/8-D-MINI-L	Sub-base · Mounting accessories
PBL-3/8-D-MINI-R	Sub-base · Mounting accessories
PBL-1/8-D-MINI-L-NPT	Sub-base · Mounting accessories
