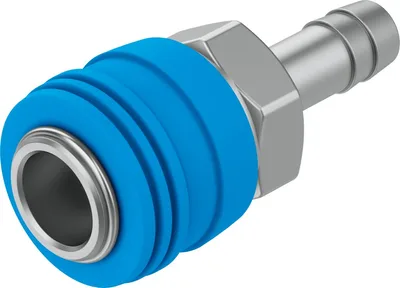

FESTO KD4-N-9

Quick coupling socket. Quick connection coupling for standard applications without safety function. Shut-off at one or both ends. With male or female thread or with barbed fitting or quick connector. Nickel-plated brass, PP. Operating medium: compressed air, vacuum

FESTOMFR # KD4-N-9SKU # CEY-937FC7820D64

Nominal size7.4

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Product weight57

Have questions?Chat on WhatsApp

About This Product

FESTO KD4-N-9

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size7.4

Operating pressure complete temperature range-0.095, 1.2

Operating pressure complete temperature range-0.95, 12

Operating pressure complete temperature range-13.775, 174

Standard nominal flow rate (standardised to DIN 1343)810, 1152

Nominal flow rate standardised according to ISO 8778878, 1248.8

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Product weight57

Pneumatic connection, port 1Barbed hose fitting 9 mm

Note on materialsRoHS compliant

Material sealsNBR

Material springHigh-alloy stainless steel

Material housingBrass, nickel-plated

Material of inner racewayBrass

Material snap ringHigh-alloy stainless steel

Material pinsHigh-alloy stainless steel

Valve body materialBrass

Material releasing sleevePP
