Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

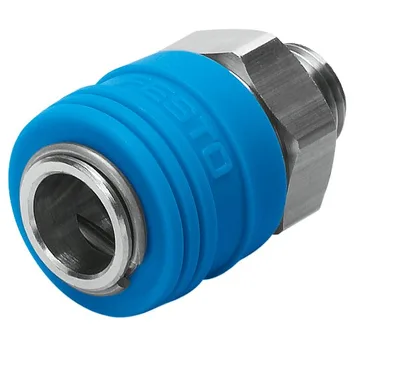

FESTO KD4-1/4-A-R

Quick coupling socket. Quick connection coupling for standard applications without safety function. Shut-off at one or both ends. With male or female thread or with barbed fitting or quick connector. Nickel-plated brass, PP. Operating medium: compressed air, vacuum

FESTOMFR # KD4-1/4-A-RSKU # CEY-937FC7820CDE

Nominal size8

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Nominal torque9.5

Have questions?Chat on WhatsApp

About This Product

FESTO KD4-1/4-A-R

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size8

Operating pressure complete temperature range-0.095, 1.2

Operating pressure complete temperature range-0.95, 12

Operating pressure complete temperature range-13.775, 174

Standard nominal flow rate (standardised to DIN 1343)765

Nominal flow rate standardised according to ISO 8778829.3

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Nominal torque9.5

Tolerance for nominal tightening torque±15%

Product weight58

Pneumatic connection, port 1Male thread G1/4

Note on materialsRoHS compliant

Material sealsNBR

Material springHigh-alloy stainless steel

Material housingBrass

Material thread sealPA66-GF30 / TPE-U

Material thread pieceBrass

Material of inner racewayBrass

Material snap ringHigh-alloy stainless steel

Material pinsHigh-alloy stainless steel

Valve body materialBrass

Material releasing sleevePP
