How can I get a price quote for FESTO KD4-1/4-A?

You can request a fast quote for FESTO KD4-1/4-A from Yılsa Engineering. Reference part number CEY-937FC7827AE8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO KD4-1/4-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO KD4-1/4-A genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO KD4-1/4-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

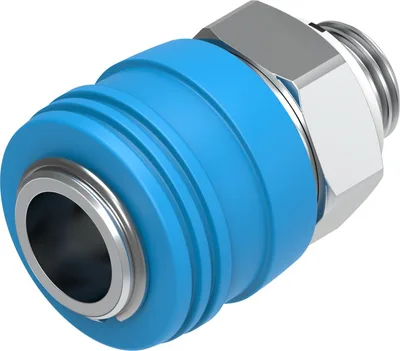

FESTO KD4-1/4-A

Quick coupling socket. Quick connection coupling for standard applications without safety function. Shut-off at one or both ends. With male or female thread or with barbed fitting or quick connector. Nickel-plated brass, PP. Operating medium: compressed air, vacuum

FESTOMFR # KD4-1/4-ASKU # CEY-937FC7827AE8

Nominal size8

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Nominal torque9.5

Have questions?Chat on WhatsApp

About This Product

FESTO KD4-1/4-A

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size8

Operating pressure complete temperature range-0.095, 1.2

Operating pressure complete temperature range-0.95, 12

Operating pressure complete temperature range-13.775, 174

Standard nominal flow rate (standardised to DIN 1343)261, 1287

Nominal flow rate standardised according to ISO 8778282.9, 1395.1

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Nominal torque9.5

Tolerance for nominal tightening torque±15%

Product weight57

Pneumatic connection, port 1Male thread G1/4

Note on materialsRoHS compliant

Material sealsNBR

Material springHigh-alloy stainless steel

Material housingBrass, nickel-plated

Material thread sealPA66-GF30 / TPE-U

Material thread pieceBrass, nickel-plated

Material of inner racewayBrass

Material snap ringHigh-alloy stainless steel

Material pinsHigh-alloy stainless steel

Valve body materialBrass

Material releasing sleevePP

Accessories 11

Genuine accessories that can be used with the FESTO KD4-1/4-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KS4-1/4-A	Quick coupling plug · General accessories
KS4-CK-4	Quick coupling plug · General accessories
KS4-CK-6	Quick coupling plug · General accessories
KS4-N-6	Quick coupling plug · General accessories
KS4-N-9	Quick coupling plug · General accessories
KS4-3/8-A	Quick coupling plug · General accessories
KS4-1/2-A	Quick coupling plug · General accessories
KS4-1/4-I	Quick coupling plug · General accessories
KS4-3/8-I	Quick coupling plug · General accessories
KS4-1/2-I	Quick coupling plug · General accessories
KS4-CK-9	Quick coupling plug · General accessories
