How can I get a price quote for FESTO KD3-CK-6?

You can request a fast quote for FESTO KD3-CK-6 from Yılsa Engineering. Reference part number CEY-937FC7820D6C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO KD3-CK-6 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO KD3-CK-6 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO KD3-CK-6?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

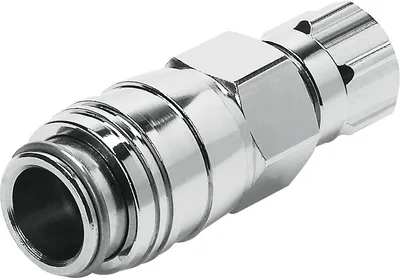

FESTO KD3-CK-6

Quick coupling socket. Quick connection coupling for standard applications without safety function. Shut-off at one or both ends. With male or female thread or with barbed fitting or quick connector. Nickel-plated brass, PP. Operating medium: compressed air, vacuum

FESTOMFR # KD3-CK-6SKU # CEY-937FC7820D6C

Nominal size4.9

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Product weight32

Have questions?Chat on WhatsApp

About This Product

FESTO KD3-CK-6

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size4.9

Operating pressure complete temperature range-0.095, 1.2

Operating pressure complete temperature range-0.95, 12

Operating pressure complete temperature range-13.775, 174

Standard nominal flow rate (standardised to DIN 1343)180, 468

Nominal flow rate standardised according to ISO 8778195.1, 507.3

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Product weight32

Pneumatic connection, port 1For tubing outer diameter of 8 mm, For barbed fitting I.D. 6 mm with union nut

Material union nutWrought aluminium alloy, anodised

Note on materialsRoHS compliant

Material sealsNBR

Material springHigh-alloy stainless steel

Material housingBrass, nickel-plated

Material ballHigh-alloy stainless steel

Material snap ringHigh-alloy stainless steel

Valve body materialBrass

Material releasing sleeveBrass, nickel-plated

Accessories 6

Genuine accessories that can be used with the FESTO KD3-CK-6 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KS3-CK-6	Quick coupling plug · General accessories
KS3-CK-4	Quick coupling plug · General accessories
KS3-1/8-A	Quick coupling plug · General accessories
KS3-1/4-A	Quick coupling plug · General accessories
KS3-1/8-I	Quick coupling plug · General accessories
KS3-1/4-I	Quick coupling plug · General accessories
