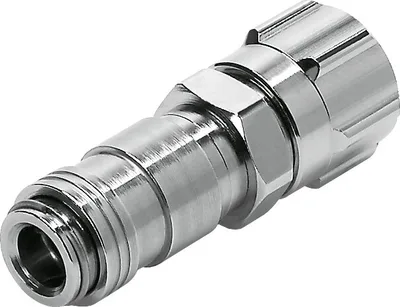

FESTO KD2-CK-3

Quick coupling socket. Quick connection coupling for standard applications without safety function. Shut-off at one or both ends. With male or female thread or with barbed fitting or quick connector. Nickel-plated brass, PP. Operating medium: compressed air, vacuum

FESTOMFR # KD2-CK-3SKU # CEY-937FC7820D74

Nominal size2

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Product weight11

Have questions?Chat on WhatsApp

About This Product

FESTO KD2-CK-3

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size2

Operating pressure complete temperature range-0.095, 1.2

Operating pressure complete temperature range-0.95, 12

Operating pressure complete temperature range-13.775, 174

Standard nominal flow rate (standardised to DIN 1343)68, 88

Nominal flow rate standardised according to ISO 877873.7, 95.4

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Product weight11

Pneumatic connection, port 1For tubing outer diameter of 4 mm, For barbed fitting I.D. 3 mm with union nut

Material union nutWrought aluminium alloy, anodised

Note on materialsRoHS compliant

Material sealsNBR

Material springHigh-alloy stainless steel

Material housingBrass, nickel-plated

Material ballHigh-alloy stainless steel

Material snap ringHigh-alloy stainless steel

Valve body materialBrass

Material releasing sleeveBrass, nickel-plated

Accessories 4

Genuine accessories that can be used with the FESTO KD2-CK-3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KS2-CK-3	Quick coupling plug · General accessories
KS2-CK-4	Quick coupling plug · General accessories
KS2-M5-A	Quick coupling plug · General accessories
KS2-M5-I	Quick coupling plug · General accessories
