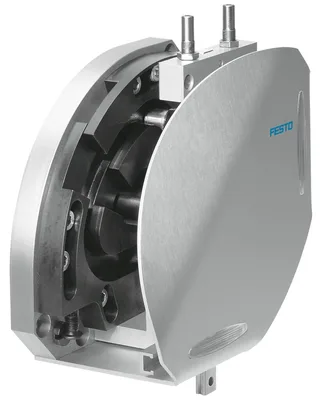

FESTO HSW-10-AP-SD

Handling module. Function module for automatically repositioning, feeding and removing small parts in extremely confined spaces. Guided swivel and linear motion. High precision and rigidity. HSW-AP: pneumatic, with swivel module DSM; HSW-AS: without drive, with drive shaft. Fast and compact. Low cost and ideal for universal use

FESTOMFR # HSW-10-AP-SDSKU # CEY-937FC781F77A

Working stroke9, 15

Size10

Max. linear stroke with 90° swivel angle90/90 mm

Z stroke80, 100

Mounting positionAny

Position detectionVia proximity switch

Have questions?Chat on WhatsApp

About This Product

FESTO HSW-10-AP-SD

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke9, 15

Size10

Max. linear stroke with 90° swivel angle90/90 mm

Z stroke80, 100

CushioningShock absorber at both ends, Soft characteristic curve

Mounting positionAny

DesignLinear guide plus ball bearing, Quarter turn actuator, Force pilot operated motion sequence

Position detectionVia proximity switch

Operating pressure4, 8

Min. cycle time0.6

Repetition accuracy end positions+/-0.02 µm

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature0, 60

Max. moment Mx0.6

Max. moment My0.6

Max. moment Mz0.6

Max. effective load0.5

Max. process force in Y direction30

Theoretical force at 0.6 MPa (6 bar, 87 psi)30

Product weight1350

Type of mountingVia through-hole and centring sleeve

Pneumatic connectionM3

Material stopsHigh-alloy steel

Material coverWrought aluminium alloy, anodised

Material spring pressure pieceHigh-alloy steel

Material base plateWrought aluminium alloy, anodised

Material retaining bracketanodised

Material cross-guideTempered steel

Material swivel leverCase-hardened steel, Burnished

Material slotted guide plateCase-hardened steel, hardened

Material sensor railWrought aluminium alloy, anodised

Material barWrought aluminium alloy, anodised

Material setting screwHigh-alloy steel
