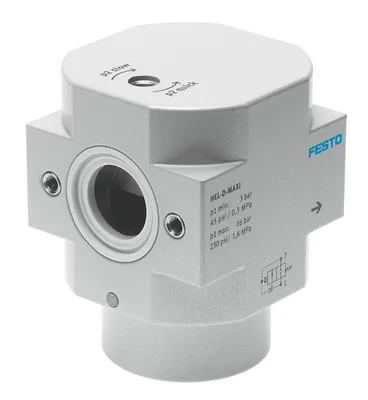

Festo HEL-D-MAXI

On/off valve. 2/2-way valve for slowly pressurising pneumatic systems (for use with on/off valves HE and HEE). For building up pressure gradually. Adjustable pressure build-up time. Size mini, midi, maxi

FestoMFR # HEL-D-MAXISKU # CEY-937FC7823C63

Exhaust-air functionCan be throttled

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Manual overrideNone

DesignPiston gate valve

Have questions?Chat on WhatsApp

About This Product

Festo HEL-D-MAXI

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Exhaust-air functionCan be throttled

Type of actuationPneumatic

Sealing principleSoft

Mounting positionAny

Manual overrideNone

DesignPiston gate valve

Type of resetMechanical spring

Type of pilotingDirect

Flow directionNon-reversible

Symbol00991513

Valve function2/2-way, single solenoid, closed

Operating pressure0.3, 1.6

Operating pressure3, 16

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Media temperature-10, 60

Ambient temperature-10, 60

Product weight394

Type of mountingInline installation

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium
