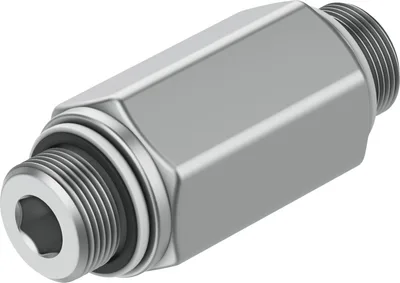

FESTO H-1/2-B

Check valve. Valve function: non-return function. Screw-in or in-line installation. With connecting thread at both ends, push-in connector at both ends, thread/push-in connector

FESTOMFR # H-1/2-BSKU # CEY-937FC7826D8A

Valve functionWith non-return function

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Type of mountingScrew-in

Operating pressure0.04, 1.2

Operating pressure0.4, 12

Have questions?Chat on WhatsApp

About This Product

Check valve. Valve function: non-return function. Screw-in or in-line installation. With connecting thread at both ends, push-in connector at both ends, thread/push-in connector

FESTO H-1/2-B

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve functionWith non-return function

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Type of mountingScrew-in

Operating pressure0.04, 1.2

Operating pressure0.4, 12

Ambient temperature-10, 60

Material housingAnodised wrought aluminium alloy

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Mounting positionAny

Symbol00991455

Standard nominal flow rate 1->2 (6-5)5500

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Storage temperature-10, 60

Media temperature-10, 60

Max. tightening torque40

Product weight58.3

Note on materialsRoHS compliant

Material sealsNBR

Accessories 5

Genuine accessories that can be used with the FESTO H-1/2-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-12X2-BL	Plastic tubing · Tubes
PUN-H-12X2-TBL	Plastic tubing · Tubes
PUN-H-12X2-NT	Plastic tubing · Tubes
PUN-H-12X2-SW	Plastic tubing · Tubes
QSF-1/2-12-B	Push-in fitting · Fittings
