How can I get a price quote for Festo GRP-10-PK-3?

You can request a fast quote for Festo GRP-10-PK-3 from Yılsa Engineering. Reference part number CEY-937FC7826F46. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo GRP-10-PK-3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo GRP-10-PK-3 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo GRP-10-PK-3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

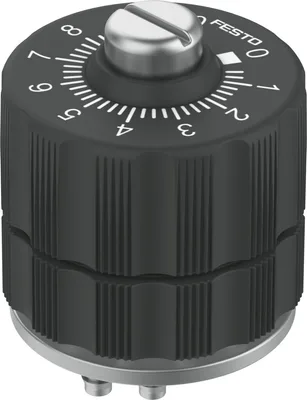

Festo GRP-10-PK-3

Precision one-way flow control valve. Non-return and flow control valve. Mounting on sub-base or for front panel mounting

FestoMFR # GRP-10-PK-3SKU # CEY-937FC7826F46

Valve functionOne-way flow control function

Pneumatic connection, port 1PK-3

Pneumatic connection, port 2PK-3

Type of actuationManual

Adjustment componentRotary knob with scale

Type of mountingFront panel mounting

Have questions?Chat on WhatsApp

About This Product

Precision one-way flow control valve. Non-return and flow control valve. Mounting on sub-base or for front panel mounting

Festo GRP-10-PK-3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve functionOne-way flow control function

Pneumatic connection, port 1PK-3

Pneumatic connection, port 2PK-3

Type of actuationManual

Adjustment componentRotary knob with scale

Type of mountingFront panel mounting

Standard nominal flow rate in flow control direction3.8

Standard nominal flow rate in blocked direction95

Operating pressure0, 8

Ambient temperature-10, 50

Material housingReinforced PA

Mounting positionAny

Symbol00991453

Operating pressure from 2 to 10, 8

Standard nominal flow rate in throttle direction for 0.1->0 MPa (1->0 bar, 14.5-1.65

Standard nominal flow rate in return direction for 0.1->0 MPa (1->0 bar, 14.5->015, 50

Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)5.2

Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)131

Operating mediumCompressed air to ISO 8573-1:2010 [5:4:3], Inert gas

Note on operating and pilot mediumLubricated operation not possible

LABS (PWIS) conformityVDMA24364 zone III

Media temperature-10, 50

Product weight48

Note on materialsRoHS compliant

Material sealsNBR, PVC

Material retaining bracketWrought aluminium alloy

Material PK connectionsWrought aluminium alloy, Brass

Material screwsSteel

Accessories 2

Genuine accessories that can be used with the Festo GRP-10-PK-3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
