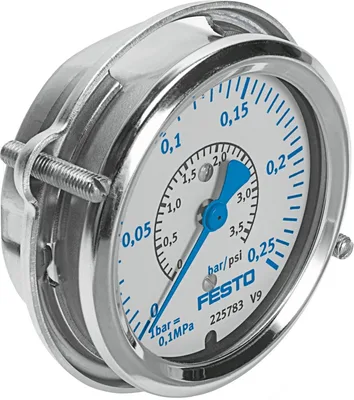

Festo FMA-63-0,25-C
Flanged pressure gauge. Designs based on EN 837-1. Pneumatic connection via G thread. Display units bar, psi
Indicating range0, 0.25
Indicating range0, 3.6
Symbol00991463
Conforms to standardEN 837-3
Nominal size of pressure gauge63
Type of mountingFront panel mounting
About This Product
Flanged pressure gauge. Designs based on EN 837-1. Pneumatic connection via G thread. Display units bar, psi
Festo FMA-63-0,25-C
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Indicating range0, 0.25
Indicating range0, 3.6
Symbol00991463
Conforms to standardEN 837-3
Nominal size of pressure gauge63
Explosion protectionThe information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Type of mountingFront panel mounting
Operating mediumLiquid media, Gaseous media
Note on operating and pilot mediumNo acetylene, No oxygen
Operating pressure0, 0.25
Alternating load factor0.9
Continuous load factor0.75
Measurement accuracy class1.6
Degree of protectionIP43
Media temperature-20, 80
Ambient temperature-20, 60
LABS (PWIS) conformityVDMA24364-B1/B2-L
Position of connectionCentred, rear
Pneumatic connectionG1/4
Material screwed plugBrass
Material housingSteel
Material screenPLEXIGLAS®
Material mounting ringSteel
Material screwsSteel
Product weight120
